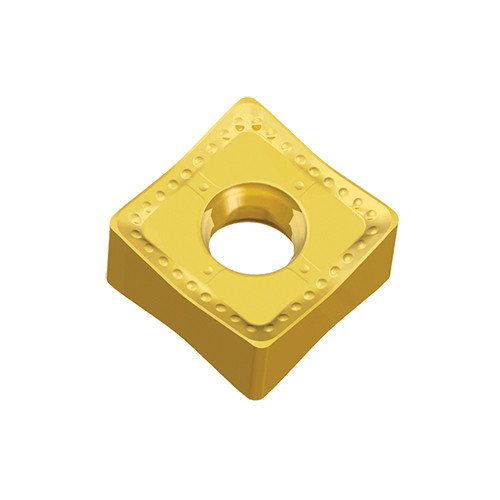

Double-sided square inserts with 8 cutting edges & corner R and wiper flat for 88° face mills
Additional information
Weight
0.0135 kg
barcode
Additional Information
Applicable Material:, Cast Iron, Hard Materials, Grade: TT7515
Application:, Facing, Inserts, Shouldering, Maximum Feed per Tooth (fz(max)): 0.2 mm/tooth
Cutting Edge Length (L): 12 mm
Cutting Edge Material: Carbide
Corner Radius (RE): 0.8 mm
Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth
Depth of Cut Maximum (APMX): 9.6 mm
Measurement Type: Metric
Inscribed Circle Diameter (IC): 13.5 mm
Body Material: Carbide
Insert Thickness (S): 6.8 mm
Unit: M
Coating: TiCN+Al2O3+TiN
