Taegutec SNGX 1306 ZN-ML TT8080

Product Code: 6129888

$35.60$32.36 Ex. GST

Product Code: 6129888 SKU 6129888 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

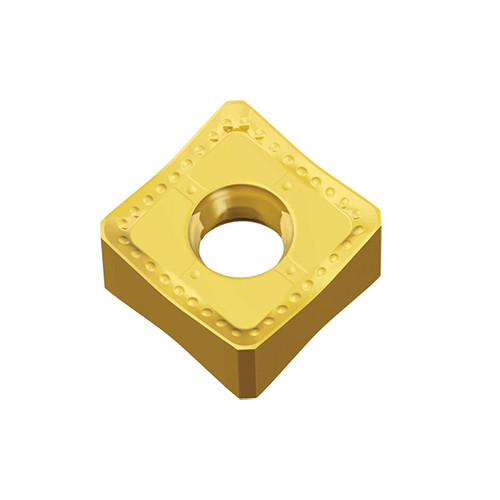

Taegutec SNGX 1306 ZN-ML TT8080

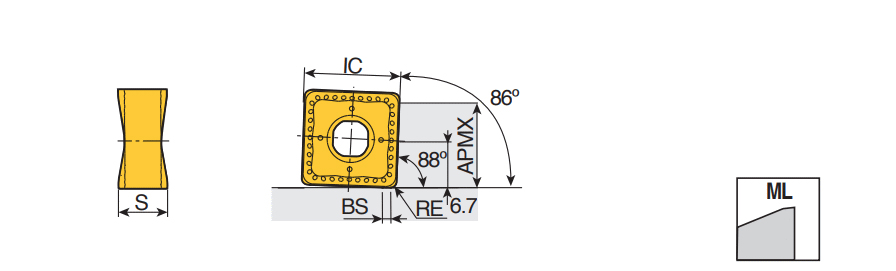

Taegutec SNGX 1306 ZN-ML TT8080 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Double-sided square inserts with 8 cutting edges & corner R and wiper flat for 88° face mills

Additional information

Weight	0.0133 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT8080 Application:, Facing, Inserts, Shouldering, Maximum Feed per Tooth (fz(max)): 0.25 mm/tooth Corner Radius (RE): 0.8 mm Cutting Edge Material: Carbide Depth of Cut Maximum (APMX): 9.6 mm Minimum Feed per Tooth (fz(min)): 0.125 mm/tooth Inscribed Circle Diameter (IC): 13.5 mm Measurement Type: Metric Insert Thickness (S): 7 mm Body Material: Carbide Coating: TiAlN+TiN Unit: M

Brand

Taegutec
