Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec SNMD 190624 HY TT8115B
$53.05$48.23 Ex. GST

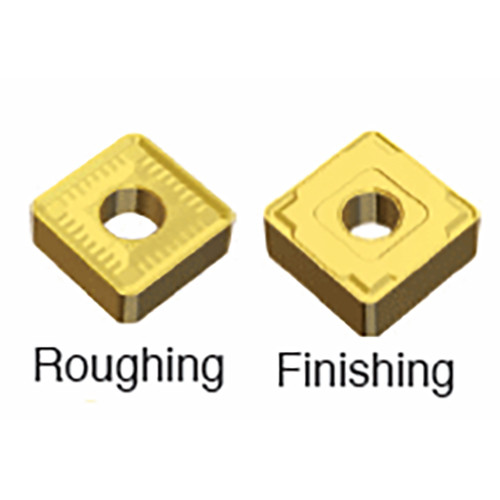

Double-sided negative Square inserts of heavy roughing on one side of strong cutting edge, and finishing on the other side
Applicable Material:, Steel, Grade: TT8115B Application:, Ext 45° App 90° Square, Ext 45°App Face&Turn 90°Square, Ext 75° App 90° Square, Ext 75° App Face 90° Square, Inserts, Int 75° App 90° Square, Min D.O.C.: 4 mm Corner Radius (RE): 2.4 mm Depth of Cut Maximum (APMX): 12 mm Cutting Edge Length (L): 19.05 mm Min. Turning Feed (ft(min)): 0.5 mm/rev Insert Thickness (S): 6.35 mm Max. Turning Feed (ft(max)): 1.1 mm/rev Inscribed Circle Diameter (IC): 19.05 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
