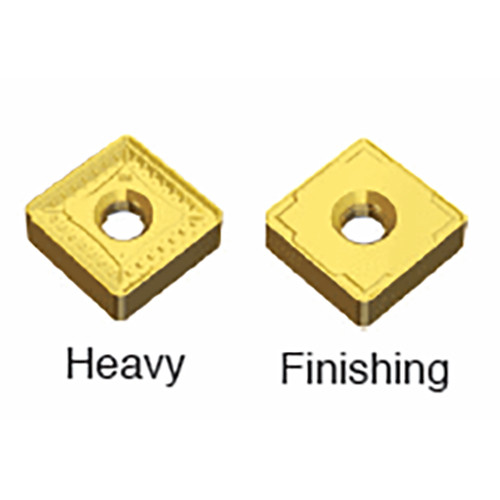

Taegutec SNMD 310924 HD TT8125B

Applicable Material:, Steel, Fixing Hole Diameter (D1): 9.5 mm
Application:, Ext 45° App 90° Square, Ext 75° App 90° Square, Inserts, Min D.O.C.: 7 mm
Corner Radius (RE): 2.4 mm
Depth of Cut Maximum (APMX): 25 mm
Cutting Edge Length (L): 31.75 mm
Min. Turning Feed (ft(min)): 0.6 mm/rev
Insert Thickness (S): 9.52 mm
Max. Turning Feed (ft(max)): 1.5 mm/rev
Inscribed Circle Diameter (IC): 31.75 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiCN+Al2O3+TiN
Unit: M
Grade: TT8125B
