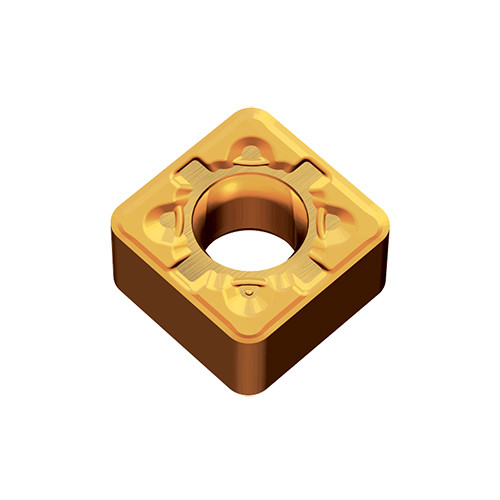

Taegutec SNMG 090408 EM TT5080

Applicable Material:, Stainless Steel, Super-Alloys / Titanium, Grade: TT5080
Application:, Ext 45° App 90° Square, Ext 45°App Face&Turn 90°Square, Ext 75° App 90° Square, Ext 75° App Face 90° Square, Inserts, Int 75° App 90° Square, Min D.O.C.: 0.5 mm
Corner Radius (RE): 0.8 mm
Depth of Cut Maximum (APMX): 3 mm
Cutting Edge Length (L): 9.52 mm
Min. Turning Feed (ft(min)): 0.13 mm/rev
Insert Thickness (S): 4.76 mm
Max. Turning Feed (ft(max)): 0.4 mm/rev
Inscribed Circle Diameter (IC): 9.52 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiAlN+TiN
Unit: M
