Taegutec SNMG 090412 MK TT9080

Description

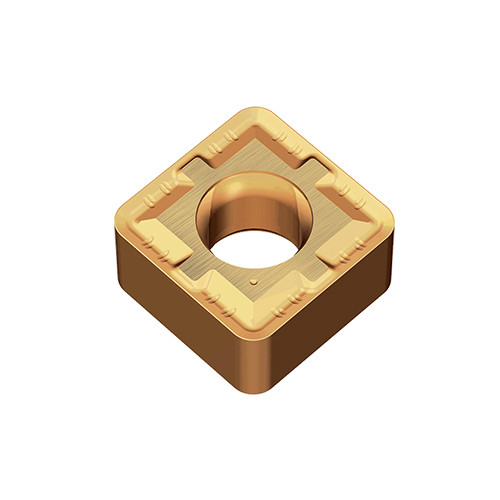

Negative Square RHINOTURN inserts for medium machining of stainless steels & heat resistant materials with sharp cutting edges

Weight	0.0060 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Ext 45° App 90° Square, Ext 45°App Face&Turn 90°Square, Ext 75° App 90° Square, Ext 75° App Face 90° Square, Inserts, Int 75° App 90° Square, Min D.O.C.: 1.5 mm Corner Radius (RE): 1.2 mm Depth of Cut Maximum (APMX): 3 mm Cutting Edge Length (L): 9.52 mm Min. Turning Feed (ft(min)): 0.23 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.5 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiAlN+TiN Unit: M
