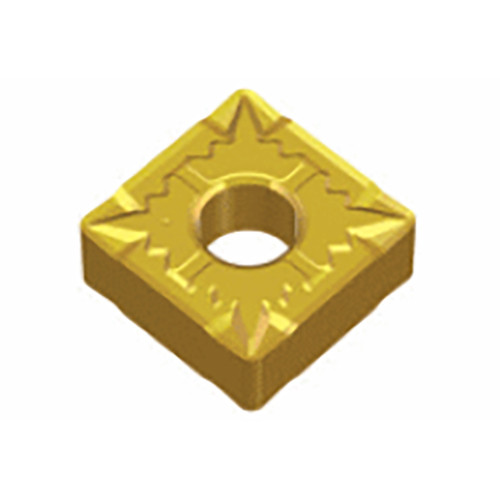

Taegutec SNMG 120404 EA TT9080

Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080
Application:, Ext 45° App 90° Square, Ext 45°App Face&Turn 90°Square, Ext 75° App 90° Square, Ext 75° App Face 90° Square, Inserts, Int 75° App 90° Square, Min D.O.C.: 0.1 mm
Corner Radius (RE): 0.4 mm
Depth of Cut Maximum (APMX): 1.5 mm
Cutting Edge Length (L): 12.7 mm
Min. Turning Feed (ft(min)): 0.05 mm/rev
Insert Thickness (S): 4.76 mm
Max. Turning Feed (ft(max)): 0.2 mm/rev
Inscribed Circle Diameter (IC): 12.7 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiAlN+TiN
Unit: M
