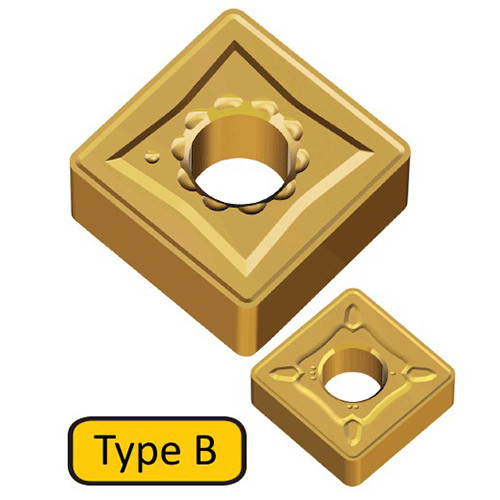

Taegutec SNMG 120412 RT TT9235

Description

Negative Square inserts for rough machining of steels and cast irons with very strong rake geometry

Weight	0.0100 kg
barcode
Additional Information	Applicable Material:, Stainless Steel, Super-Alloys / Titanium, Grade: TT9235 Application:, Ext 45° App 90° Square, Ext 45°App Face&Turn 90°Square, Ext 75° App 90° Square, Ext 75° App Face 90° Square, Inserts, Int 75° App 90° Square, Min D.O.C.: 2.5 mm Corner Radius (RE): 1.2 mm Depth of Cut Maximum (APMX): 6 mm Cutting Edge Length (L): 12.7 mm Min. Turning Feed (ft(min)): 0.3 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.7 mm/rev Inscribed Circle Diameter (IC): 12.7 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al203+TiCN Unit: M
