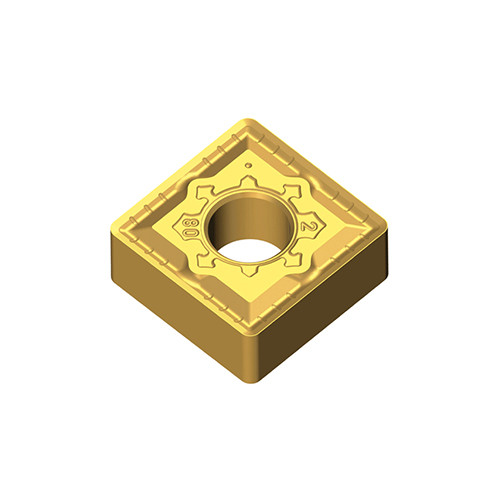

Taegutec SNMG 190616 MGS TT3020

Applicable Material:, Super-Alloys / Titanium, Grade: TT3020
Application:, Ext 45° App 90° Square, Ext 45°App Face&Turn 90°Square, Ext 75° App 90° Square, Ext 75° App Face 90° Square, Inserts, Int 75° App 90° Square, Min D.O.C.: 1.5 mm
Corner Radius (RE): 1.6 mm
Depth of Cut Maximum (APMX): 8 mm
Cutting Edge Length (L): 19.05 mm
Min. Turning Feed (ft(min)): 0.17 mm/rev
Insert Thickness (S): 6.35 mm
Max. Turning Feed (ft(max)): 0.6 mm/rev
Inscribed Circle Diameter (IC): 19.05 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: AlTiN+TiN
Unit: M
