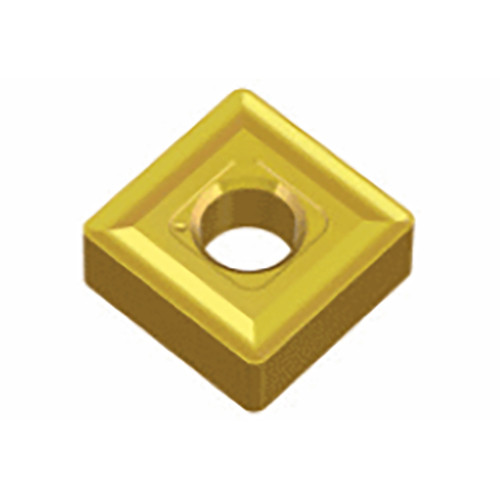

Taegutec SNMG 250724 TT8125B

Applicable Material:, Steel, Grade: TT8125B
Application:, Ext 45° App 90° Square, Ext 45°App Face&Turn 90°Square, Ext 75° App 90° Square, Ext 75° App Face 90° Square, Inserts, Int 75° App 90° Square, Min D.O.C.: 5 mm
Corner Radius (RE): 2.4 mm
Depth of Cut Maximum (APMX): 12 mm
Cutting Edge Length (L): 23 mm
Min. Turning Feed (ft(min)): 0.5 mm/rev
Insert Thickness (S): 7.94 mm
Max. Turning Feed (ft(max)): 1 mm/rev
Inscribed Circle Diameter (IC): 25.4 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiCN+Al2O3+TiN
Unit: M
