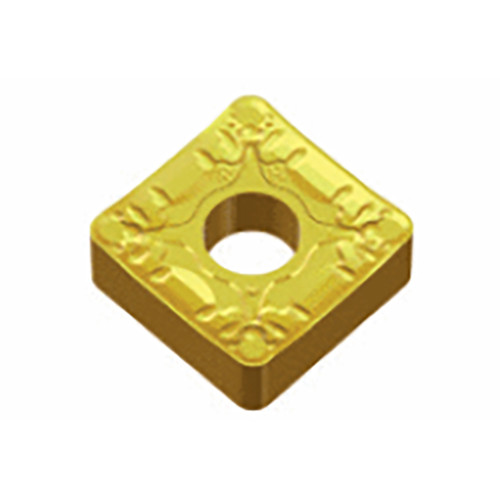

Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec SNMM 190616 RH TT7100
$48.22$43.84 Ex. GST
Negative single-sided Square inserts for roughing of steel, stainless steel & cast iron with very strong rake geometry
Applicable Material:, Steel, Grade: TT7100 Application:, Ext 45° App 90° Square, Ext 45°App Face&Turn 90°Square, Ext 75° App 90° Square, Ext 75° App Face 90° Square, Inserts, Int 75° App 90° Square, Min D.O.C.: 4 mm Corner Radius (RE): 1.6 mm Depth of Cut Maximum (APMX): 9 mm Cutting Edge Length (L): 19.05 mm Min. Turning Feed (ft(min)): 0.45 mm/rev Insert Thickness (S): 6.35 mm Max. Turning Feed (ft(max)): 1 mm/rev Inscribed Circle Diameter (IC): 19.05 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
