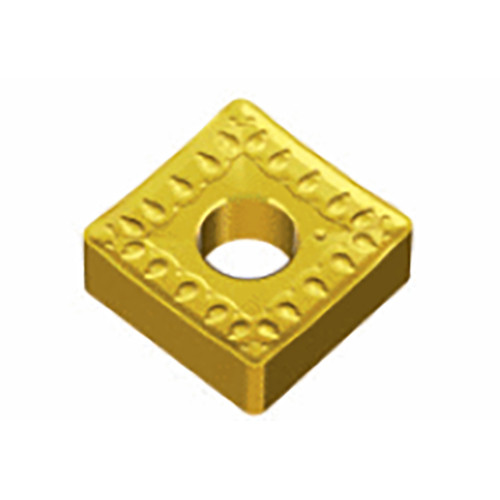

Taegutec SNMM 250724 RX TT8125B

Description

Single sided negative square type inserts for semi heavy roughing of steel, stainless steel and cast iron with low cutting force

Weight	0.1086 kg
barcode
Additional Information	Applicable Material:, Steel, Grade: TT8125B Application:, Ext 45° App 90° Square, Ext 45°App Face&Turn 90°Square, Ext 75° App 90° Square, Ext 75° App Face 90° Square, Inserts, Int 75° App 90° Square, Min D.O.C.: 2 mm Corner Radius (RE): 2.4 mm Depth of Cut Maximum (APMX): 12 mm Cutting Edge Length (L): 25.4 mm Min. Turning Feed (ft(min)): 0.35 mm/rev Insert Thickness (S): 7.94 mm Max. Turning Feed (ft(max)): 1.2 mm/rev Inscribed Circle Diameter (IC): 25.4 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
