Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec SNMM 250924 RH TT8135B
$98.67$89.70 Ex. GST

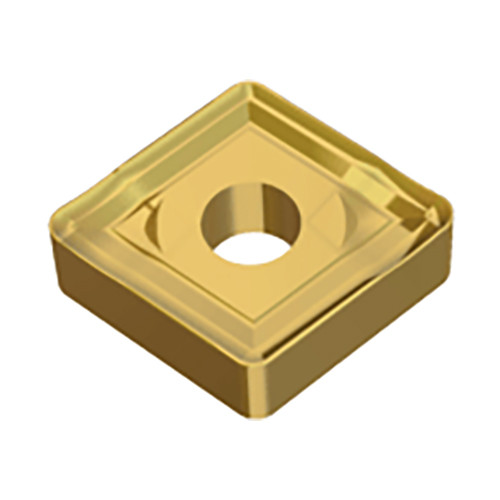

Negative single-sided Square inserts for roughing of steel, stainless steel & cast iron with very strong rake geometry

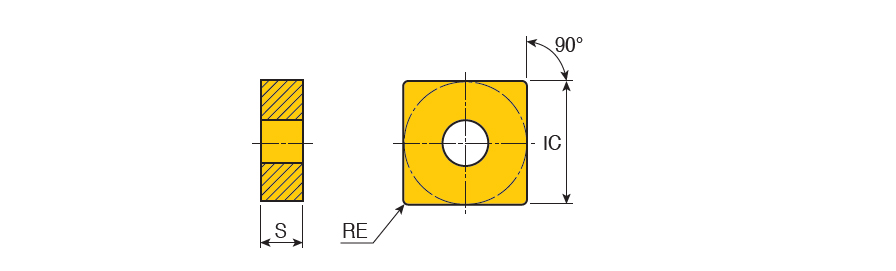

Applicable Material:, Steel, Grade: TT8135B Application:, Ext 45° App 90° Square, Ext 45°App Face&Turn 90°Square, Ext 75° App 90° Square, Ext 75° App Face 90° Square, Inserts, Min D.O.C.: 5 mm Corner Radius (RE): 2.4 mm Depth of Cut Maximum (APMX): 12 mm Cutting Edge Length (L): 25.4 mm Min. Turning Feed (ft(min)): 0.55 mm/rev Insert Thickness (S): 9.52 mm Max. Turning Feed (ft(max)): 1.2 mm/rev Inscribed Circle Diameter (IC): 25.4 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
