Taegutec SNMX 1306 ANTR-MP TT8080

Product Code: 5614738

$29.15$26.50 Ex. GST

Product Code: 5614738 SKU 5614738 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

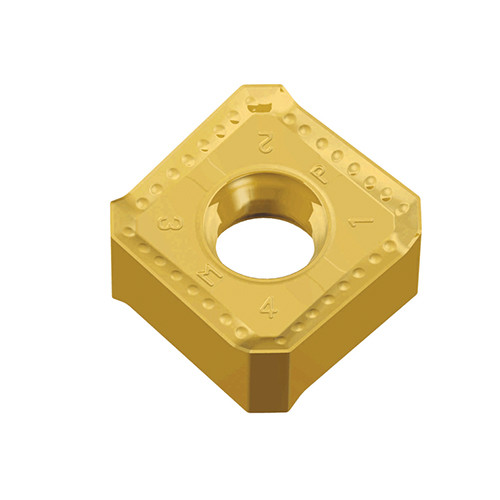

Double-sided square inserts with helical 8 cutting edges of smooth machining for right-handed 45° face mills

Weight	0.0132 kg
barcode

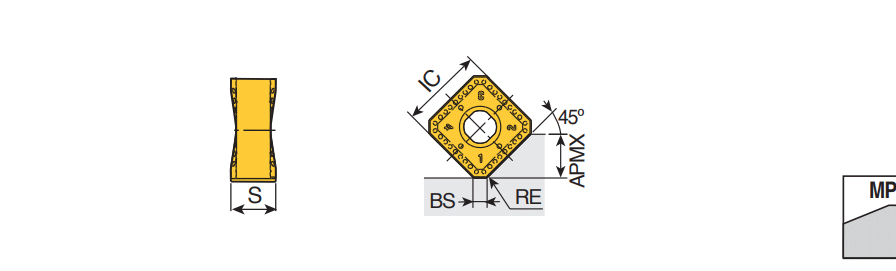

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT8080 Application:, Chamfer & Serration, Facing, Inserts, Maximum Feed per Tooth (fz(max)): 0.2 mm/tooth Cutting Edge Length (L): 6 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.4 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Depth of Cut Maximum (APMX): 6 mm Number of Cutting Edges: 4 Inscribed Circle Diameter (IC): 13.5 mm Measurement Type: Metric Insert Thickness (S): 6.8 mm Body Material: Carbide Coating: TiAlN+TiN Unit: M
