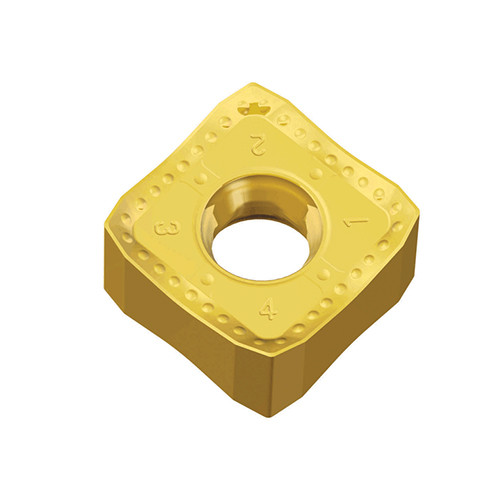

Double-sided square inserts with 8 cutting edges for 75 face mills and general applications
Additional information
Weight
0.0138 kg
barcode
Additional Information
Applicable Material:, Steel, Hard Materials, Grade: TT2510
Application:, Chamfer & Serration, Facing, Inserts, Maximum Feed per Tooth (fz(max)): 0.2 mm/tooth

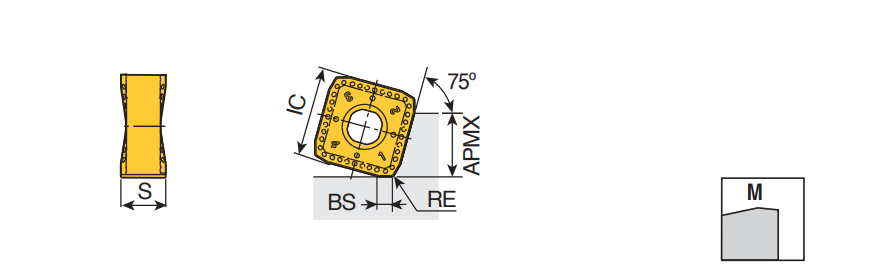

Corner Radius (RE): 0.4 mm
Cutting Edge Material: Carbide
Depth of Cut Maximum (APMX): 8 mm
Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth
Inscribed Circle Diameter (IC): 13.5 mm
Measurement Type: Metric
Insert Thickness (S): 7 mm
Body Material: Carbide
Coating: AlTiN
Unit: M
