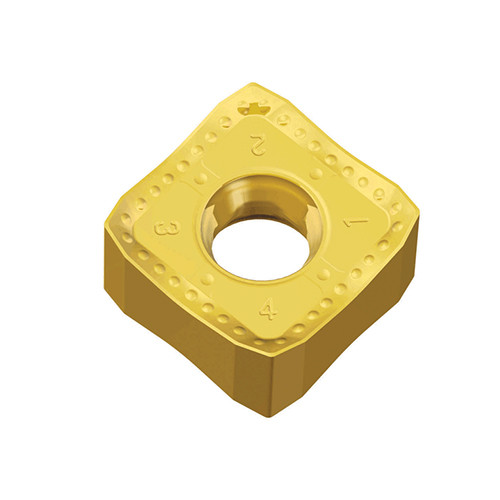

Taegutec SNMX 1306 ENTN-M TT9080

Product Code: 5614729

$29.15$26.50 Ex. GST

Product Code: 5614729 SKU 5614729 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Taegutec SNMX 1306 ENTN-M TT9080

Taegutec SNMX 1306 ENTN-M TT9080 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Double-sided square inserts with 8 cutting edges for 75 face mills and general applications

Additional information

Weight	0.0126 kg
barcode

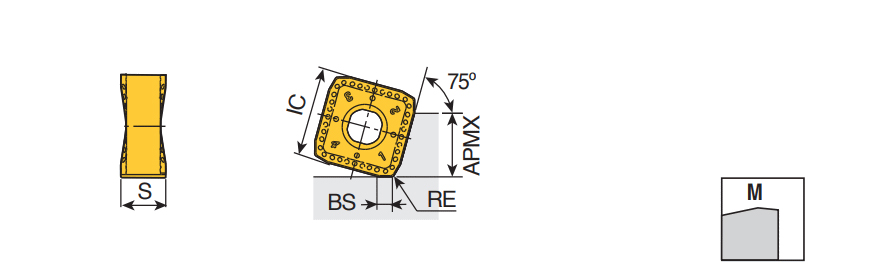

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Chamfer & Serration, Facing, Inserts, Maximum Feed per Tooth (fz(max)): 0.2 mm/tooth Corner Radius (RE): 0.4 mm Cutting Edge Material: Carbide Depth of Cut Maximum (APMX): 8 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Inscribed Circle Diameter (IC): 13.5 mm Measurement Type: Metric Insert Thickness (S): 7 mm Body Material: Carbide Coating: TiAlN+TiN Unit: M

Brand

Taegutec
