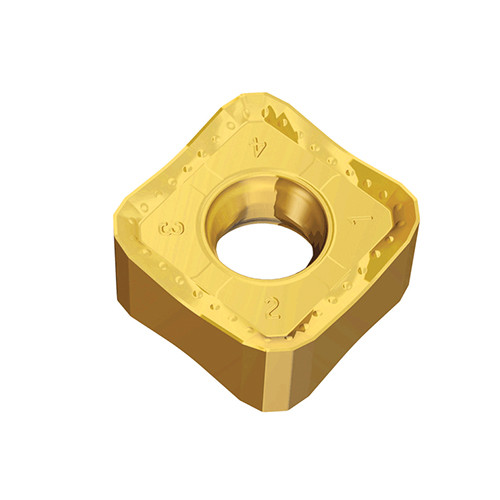

Double-sided square inserts with 8 cutting edges for 45° and 75° face mills with two chamfers

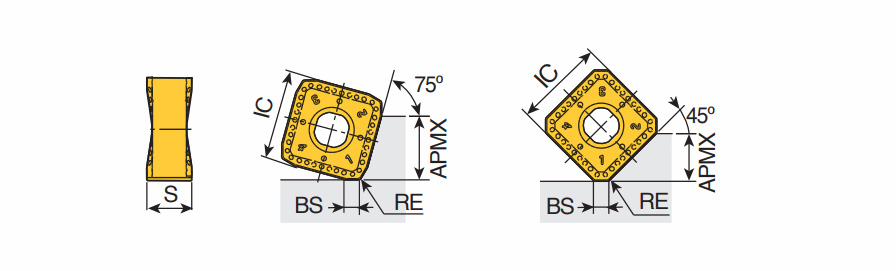

Applicable Material:, Steel, Cast Iron, Grade: TT7080 Application:, Chamfer & Serration, Facing, Inserts, Maximum Feed per Tooth (fz(max)): 0.2 mm/tooth Cutting Edge Length (L): 6.35 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.4 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Depth of Cut Maximum (APMX): 6.5 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 13.5 mm Body Material: Carbide Insert Thickness (S): 6.9 mm Unit: M Coating: TiAlN+TiN
