Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec SNMX 1607 ANTN-M TT7080
$36.56$33.24 Ex. GST

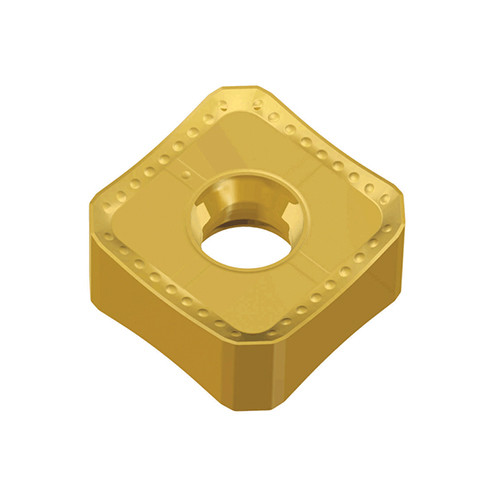

Heavy duty double-sided square inserts with 8 cutting edges for steel and cast iron in 45° face mills

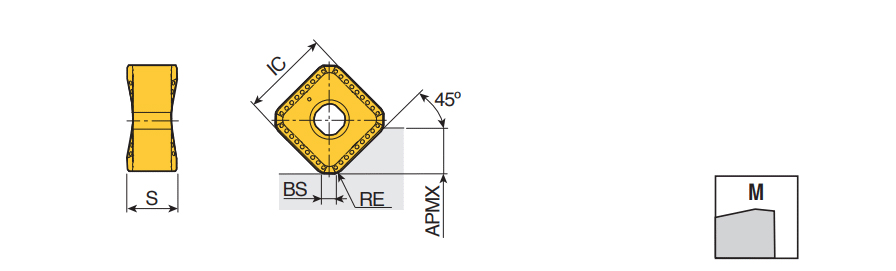

Applicable Material:, Steel, Cast Iron, Grade: TT7080 Application:, Chamfer & Serration, Facing, Inserts, Maximum Feed per Tooth (fz(max)): 0.25 mm/tooth Cutting Edge Length (L): 0 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.125 mm/tooth Depth of Cut Maximum (APMX): 7.5 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 16.7 mm Body Material: Carbide Insert Thickness (S): 7.8 mm Unit: M Coating: TiAlN+TiN
