Taegutec SNMX 1607 ANTN-M TT8080

Product Code: 5615303

$36.56$33.24 Ex. GST

Product Code: 5615303 SKU 5615303 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

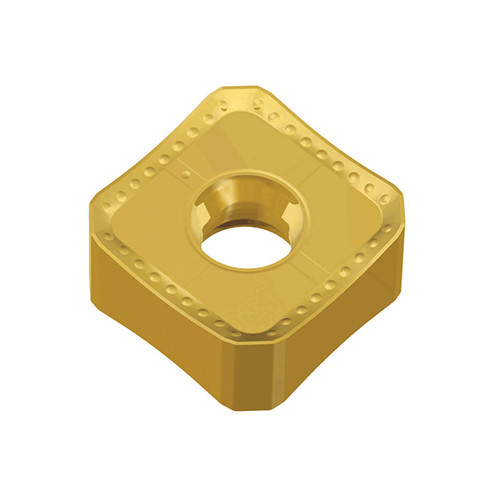

Heavy duty double-sided square inserts with 8 cutting edges for steel and cast iron in 45° face mills

Weight	0.0237 kg
barcode

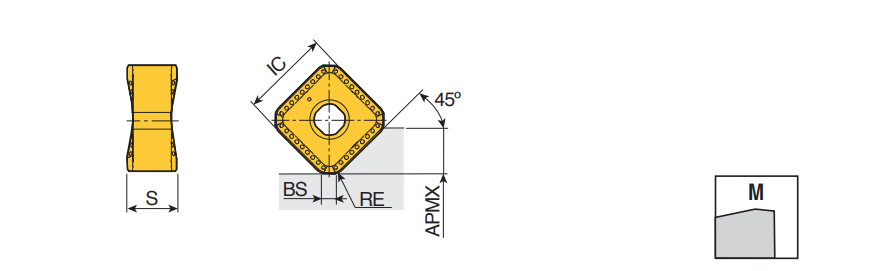

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT8080 Application:, Chamfer & Serration, Facing, Inserts, Maximum Feed per Tooth (fz(max)): 0.25 mm/tooth Cutting Edge Length (L): 0 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.125 mm/tooth Depth of Cut Maximum (APMX): 7.5 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 16.7 mm Body Material: Carbide Insert Thickness (S): 7.8 mm Unit: M Coating: TiAlN+TiN
