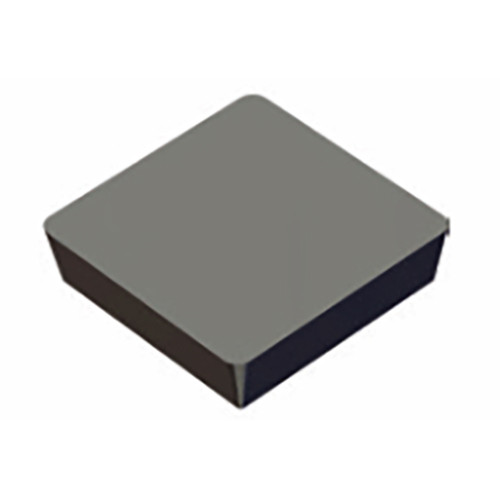

Taegutec SPGN 120308 AB30

Product Code: 5700627

$33.07$30.06 Ex. GST

Product Code: 5700627 SKU 5700627 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Positive Square Ceramic ground inserts without hole of 11° clearance angle for cast iron machining

Weight	0.0033 kg
barcode
Additional Information	Applicable Material:, Cast Iron, Hard Materials, Grade: AB30 Application:, Ext 45° App 90° Square, Inserts, Int 75° App 90° Square, Min D.O.C.: 1 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 3.5 mm Cutting Edge Length (L): 12.7 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Insert Thickness (S): 3.18 mm Max. Turning Feed (ft(max)): 0.2 mm/rev Inscribed Circle Diameter (IC): 12.7 mm Measurement Type: Metric Cutting Edge Material: Ceramic Body Material: Carbide Coating: TiCN+Al2O3 Unit: M
