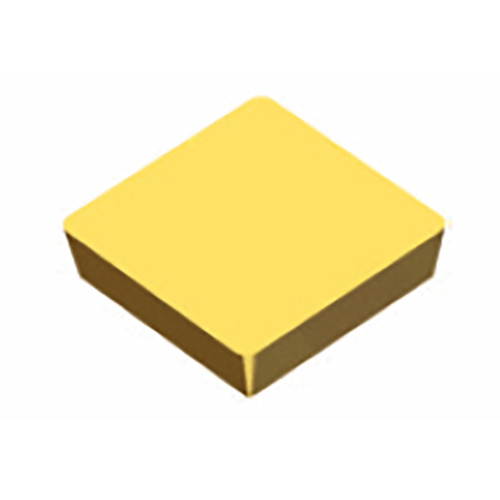

Taegutec SPGN 120416 K10

Applicable Material:, Cast Iron, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium, Grade: K10
Application:, Ext 45° App 90° Square, Inserts, Int 75° App 90° Square, Min D.O.C.: 1 mm
Corner Radius (RE): 1.6 mm
Depth of Cut Maximum (APMX): 5 mm
Cutting Edge Length (L): 12.7 mm
Min. Turning Feed (ft(min)): 0.18 mm/rev
Insert Thickness (S): 4.76 mm
Max. Turning Feed (ft(max)): 0.33 mm/rev
Inscribed Circle Diameter (IC): 12.7 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: Uncoated
Unit: M
