Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec SPMG 090408-EM TT6080
$20.72$18.84 Ex. GST

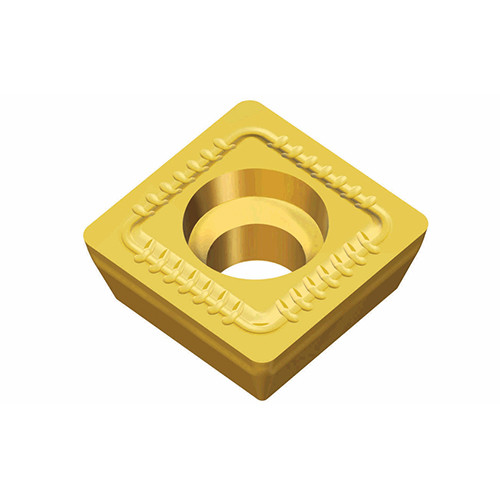

Positive square milling inserts with 4 cutting edges for general applications

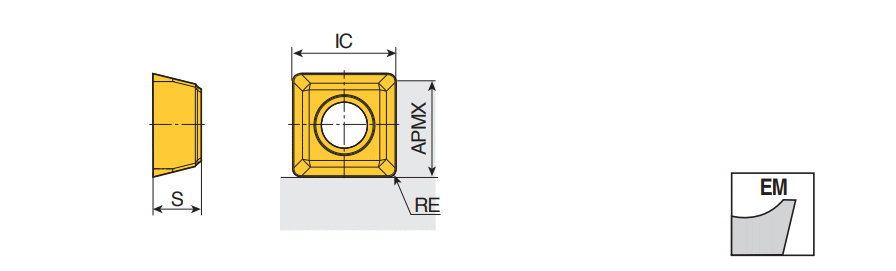

Applicable Material:, Cast Iron, Hard Materials, Grade: TT6080 Application:, Chamfer & Serration, Counter Boring, Countersinking, Drill Mill, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Side Plunging, Slotting, Step down machining, Maximum Feed per Tooth (fz(max)): 0.15 mm/tooth Cutting Edge Length (L): 9 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.08 mm/tooth Depth of Cut Maximum (APMX): 7.2 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 9.8 mm Body Material: Carbide Insert Thickness (S): 4.3 mm Unit: M Coating: AlTiN+TiN
