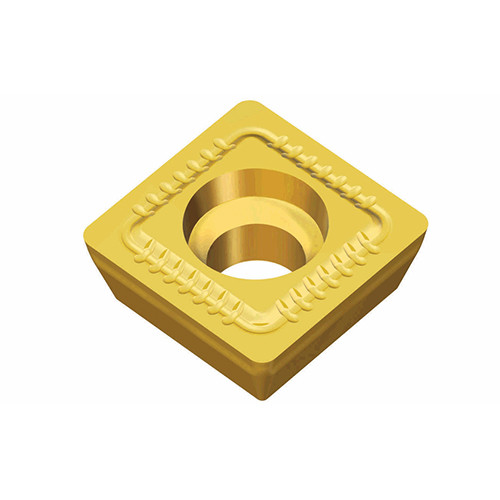

Taegutec SPMG 110408-EM TT6080

Applicable Material:, Cast Iron, Hard Materials, Grade: TT6080
Application:, Chamfer & Serration, Counter Boring, Countersinking, Drill Mill, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Side Plunging, Slotting, Step down machining, Maximum Feed per Tooth (fz(max)): 0.15 mm/tooth

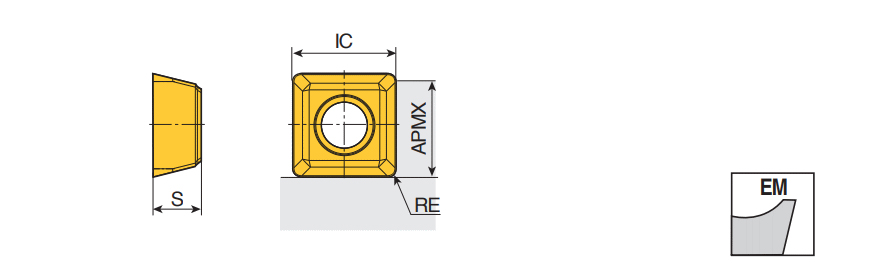

Cutting Edge Length (L): 10.7 mm
Cutting Edge Material: Carbide
Corner Radius (RE): 0.8 mm
Minimum Feed per Tooth (fz(min)): 0.08 mm/tooth
Depth of Cut Maximum (APMX): 8.56 mm
Measurement Type: Metric
Inscribed Circle Diameter (IC): 11.5 mm
Body Material: Carbide
Insert Thickness (S): 4.8 mm
Unit: M
Coating: AlTiN+TiN
