Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec SPMG 110408-EM TT9080
$22.65$20.59 Ex. GST

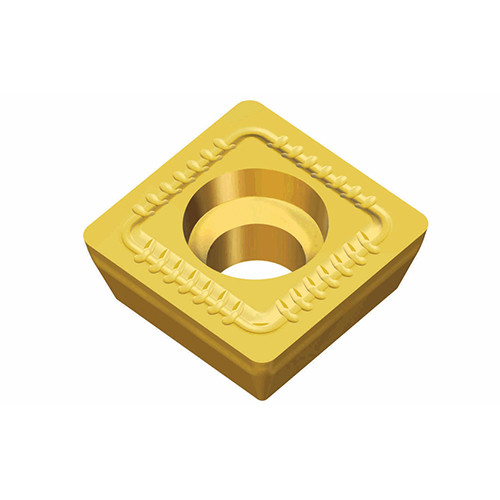

Positive square milling inserts with 4 cutting edges for general applications

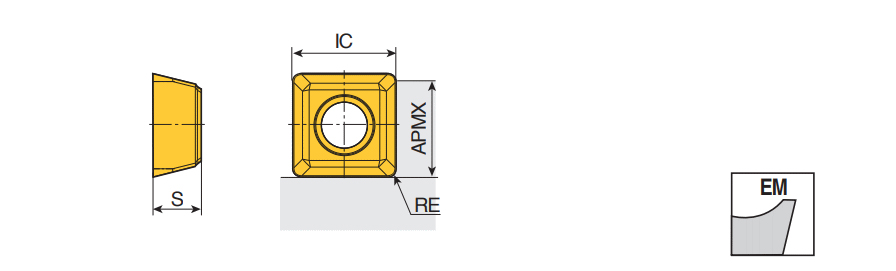

Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Chamfer & Serration, Counter Boring, Countersinking, Drill Mill, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Side Plunging, Slotting, Step down machining, Maximum Feed per Tooth (fz(max)): 0.15 mm/tooth Cutting Edge Length (L): 10.7 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.08 mm/tooth Depth of Cut Maximum (APMX): 8.56 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 11.5 mm Body Material: Carbide Insert Thickness (S): 4.8 mm Unit: M Coating: TiAlN+TiN
