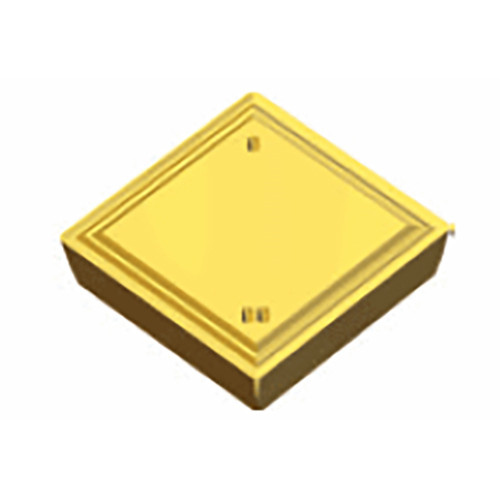

Taegutec SPMR 090304 TT5100

Product Code: 5515290

$14.18$12.89 Ex. GST

Product Code: 5515290 SKU 5515290 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Positive Square inserts for medium and medium-rough for steel, stainless steel & cast iron with positive rake angle

Weight	0.0050 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Grade: TT5100 Application:, Ext 45° App 90° Square, Inserts, Int 75° App 90° Square, Min D.O.C.: 0.7 mm Corner Radius (RE): 0.4 mm Depth of Cut Maximum (APMX): 3.5 mm Cutting Edge Length (L): 9.52 mm Min. Turning Feed (ft(min)): 0.1 mm/rev Insert Thickness (S): 3.18 mm Max. Turning Feed (ft(max)): 0.25 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
