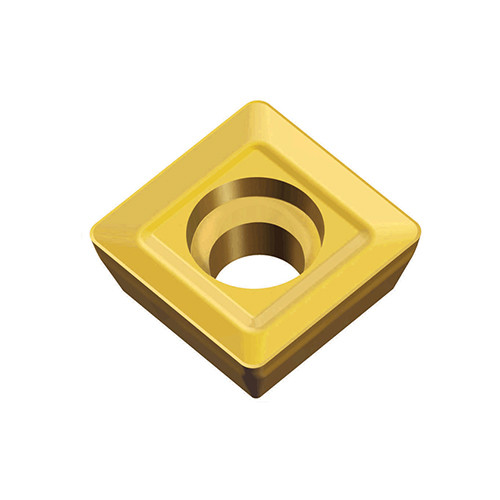

Taegutec SPMT 140508-EM TT7080

Applicable Material:, Steel, Cast Iron, Grade: TT7080
Application:, Chamfer & Serration, Counter Boring, Countersinking, Drill Mill, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Side Plunging, Slotting, Step down machining, Maximum Feed per Tooth (fz(max)): 0.14 mm/tooth

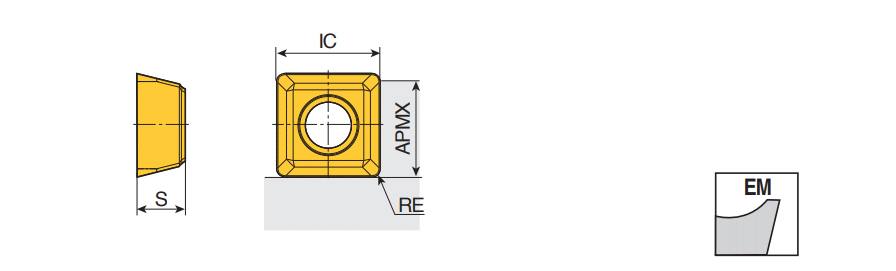

Cutting Edge Length (L): 13.4 mm
Cutting Edge Material: Carbide
Corner Radius (RE): 0.8 mm
Minimum Feed per Tooth (fz(min)): 0.07 mm/tooth
Depth of Cut Maximum (APMX): 11 mm
Measurement Type: Metric
Inscribed Circle Diameter (IC): 14.2 mm
Body Material: Carbide
Insert Thickness (S): 5.2 mm
Unit: M
Coating: TiAlN+TiN
