Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec SPMT 140508-EM TT9080
$28.47$25.88 Ex. GST

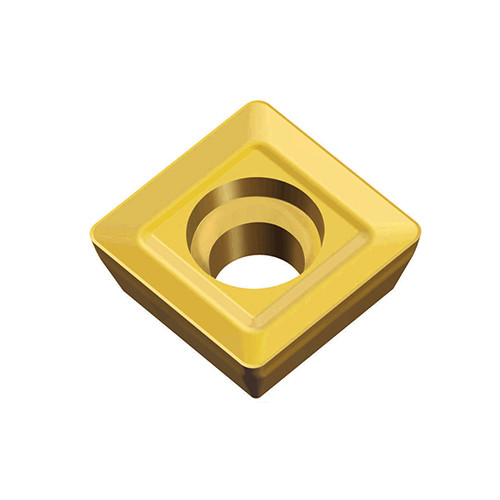

Positive square inserts with 4 cutting edges for general milling applications

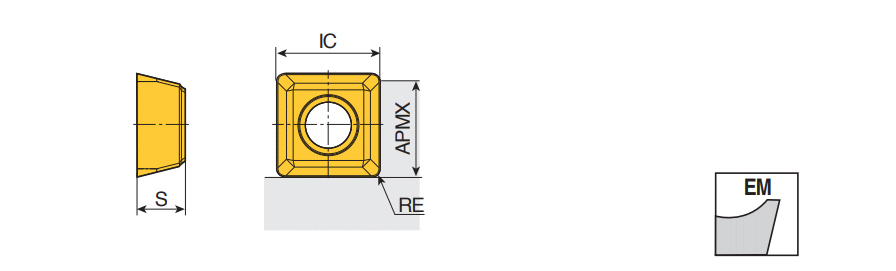

Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Chamfer & Serration, Counter Boring, Countersinking, Drill Mill, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Side Plunging, Slotting, Step down machining, Maximum Feed per Tooth (fz(max)): 0.14 mm/tooth Cutting Edge Length (L): 13.4 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.07 mm/tooth Depth of Cut Maximum (APMX): 11 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 14.2 mm Body Material: Carbide Insert Thickness (S): 5.2 mm Unit: M Coating: TiAlN+TiN
