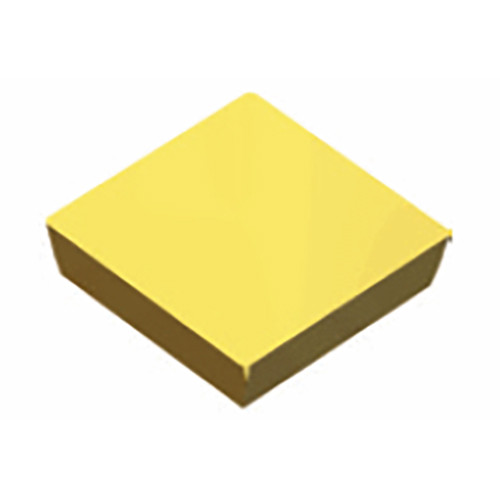

Taegutec SPUN 190412 TT8125B

Product Code: 6212307

$40.67$36.97 Ex. GST

Product Code: 6212307 SKU 6212307 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Square single sided for medium turning

Additional information

Weight 0.0243 kg
barcode
Additional Information

Applicable Material:, Steel, Grade: TT8125B
Application:, Ext 45° App 90° Square, Inserts, Int 75° App 90° Square, Min D.O.C.: 1.5 mm
Corner Radius (RE): 1.2 mm
Depth of Cut Maximum (APMX): 9 mm
Cutting Edge Length (L): 19.05 mm
Min. Turning Feed (ft(min)): 0.2 mm/rev
Insert Thickness (S): 4.76 mm
Max. Turning Feed (ft(max)): 0.5 mm/rev
Inscribed Circle Diameter (IC): 19.05 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiCN+Al2O3+TiN
Unit: M

Brand

Taegutec
