Taegutec SQHU 100408 PNR-MMPTT6080

Product Code: 6234651

$31.48$28.62 Ex. GST

Product Code: 6234651 SKU 6234651 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

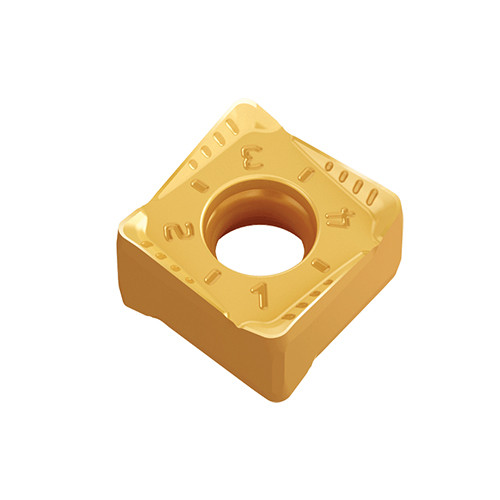

Taegutec SQHU 100408 PNR-MMPTT6080

Taegutec SQHU 100408 PNR-MMPTT6080 - Image 2

Taegutec SQHU 100408 PNR-MMPTT6080 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

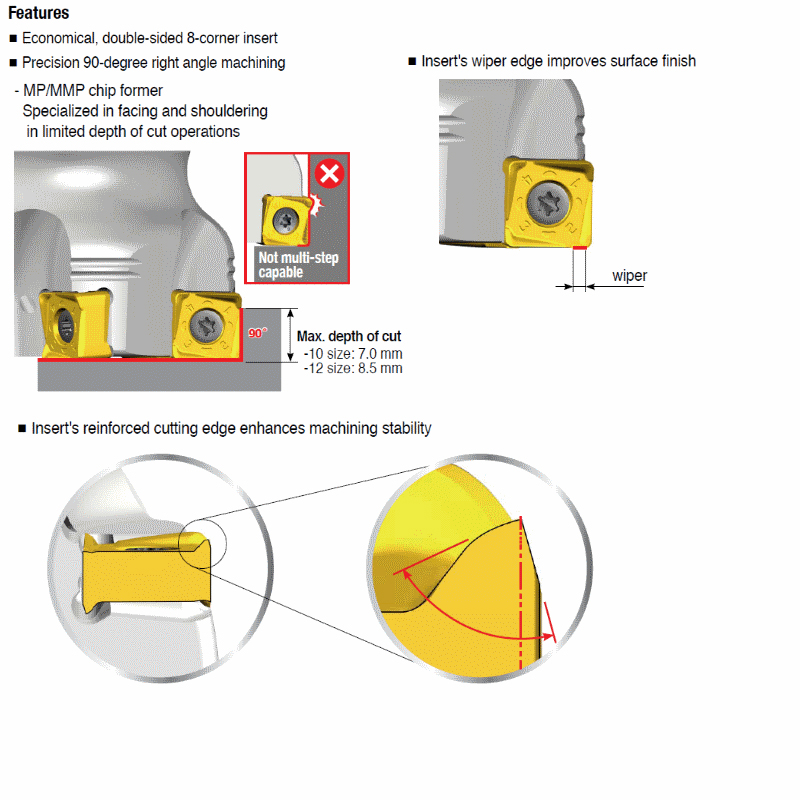

Double-sided Square inserts with economical 8 cutting edges for 90° shouldering and face milling in general applications

Additional information

Weight	0.0072 kg
barcode

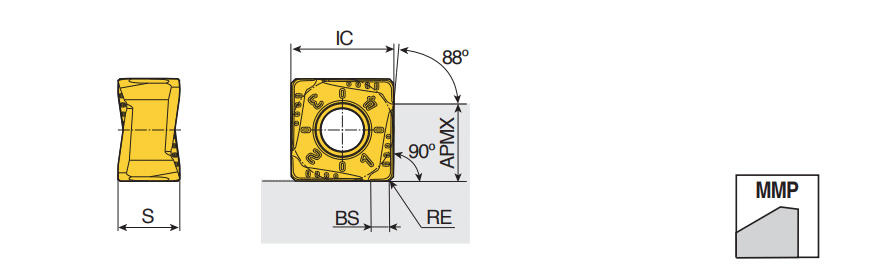

Additional Information	Applicable Material:, Cast Iron, Hard Materials, Maximum Feed per Tooth (fz(max)): 0.2 mm/tooth Application:, Facing, Inserts, Shouldering, Slotting, Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Depth of Cut Maximum (APMX): 5.5 mm Number of Cutting Edges: 8 Inscribed Circle Diameter (IC): 10 mm Measurement Type: Metric Insert Thickness (S): 6 mm Body Material: Carbide Coating: AlTiN+TiN Unit: M Grade: TT6080

Brand

Taegutec
