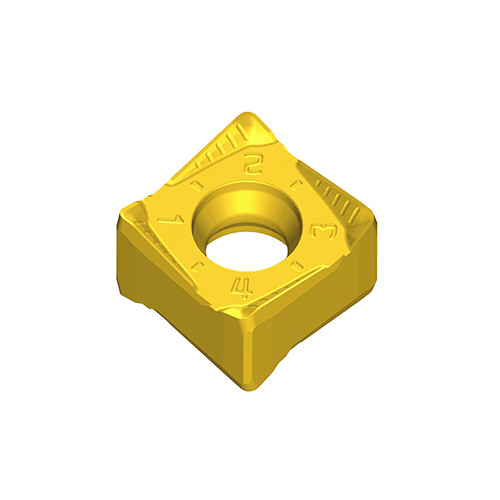

Taegutec SQHU 120608 PNR-MMPTT6080

Product Code: 6318015

$34.88$31.71 Ex. GST

Product Code: 6318015 SKU 6318015 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

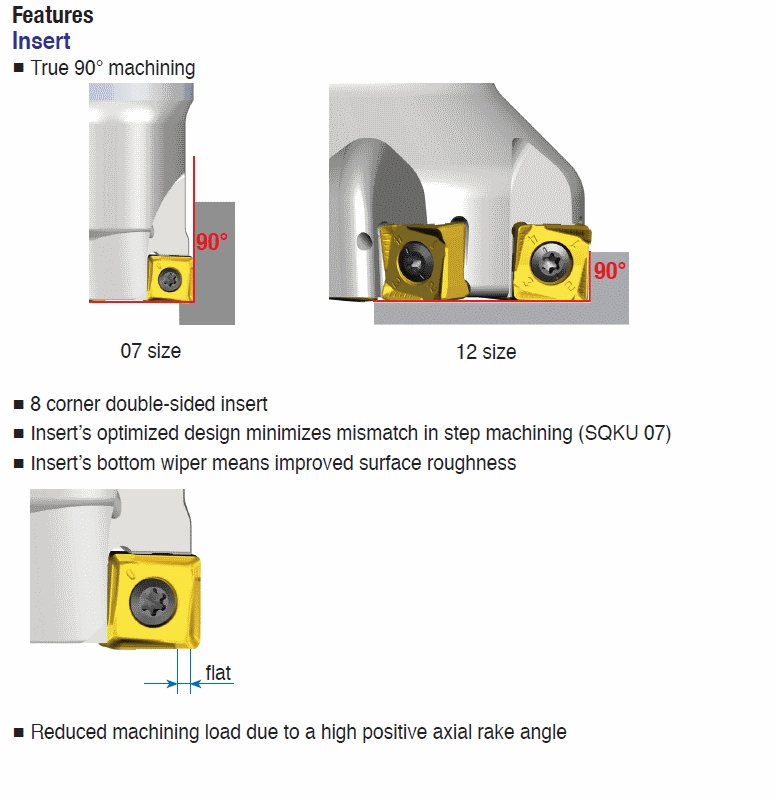

Double-sided Ground square inserts of economical 8 cutting edges for 90° shoulder milling for cast iron machining

Weight	0.0119 kg
barcode

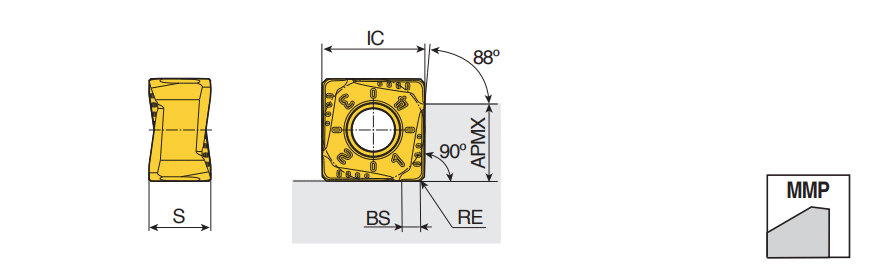

Additional Information	Applicable Material:, Cast Iron, Hard Materials, Maximum Feed per Tooth (fz(max)): 0.25 mm/tooth Application:, Facing, Inserts, Shouldering, Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.15 mm/tooth Depth of Cut Maximum (APMX): 6.5 mm Number of Cutting Edges: 8 Inscribed Circle Diameter (IC): 12.2 mm Measurement Type: Metric Insert Thickness (S): 8.06 mm Body Material: Carbide Coating: AlTiN+TiN Unit: M Grade: TT6080
