Taegutec SQKU 100408 PNR-M TT9080

Product Code: 6234652

$25.82$23.47 Ex. GST

Product Code: 6234652 SKU 6234652 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

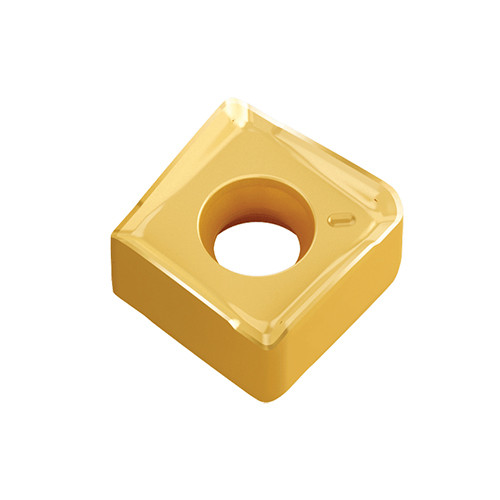

Taegutec SQKU 100408 PNR-M TT9080

Taegutec SQKU 100408 PNR-M TT9080 - Image 2

Taegutec SQKU 100408 PNR-M TT9080 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

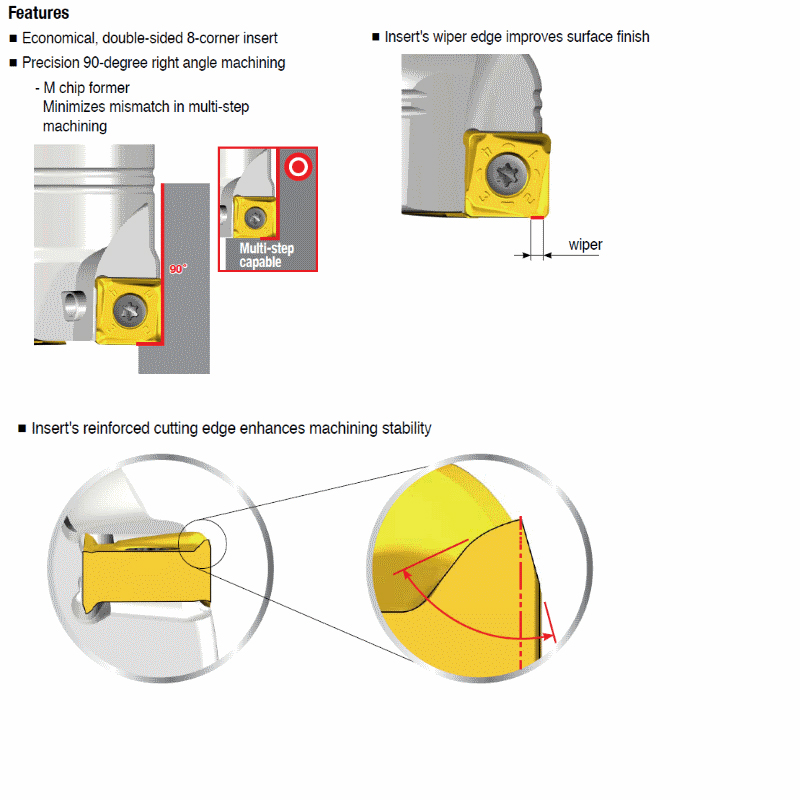

Double-sided Square inserts with 8 cutting edges for 90° shoulder milling & multistep machining without mismatch for general applications

Additional information

Weight	0.0064 kg
barcode

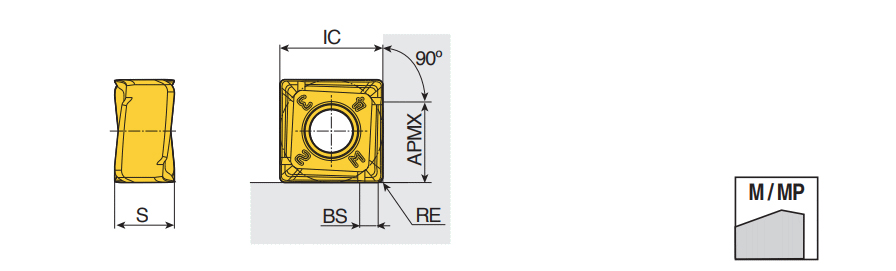

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Maximum Feed per Tooth (fz(max)): 0.2 mm/tooth Application:, Facing, Inserts, Shouldering, Slotting, Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Depth of Cut Maximum (APMX): 5.5 mm Number of Cutting Edges: 8 Inscribed Circle Diameter (IC): 10 mm Measurement Type: Metric Insert Thickness (S): 5.8 mm Body Material: Carbide Coating: TiAlN+TiN Unit: M Grade: TT9080

Brand

Taegutec
