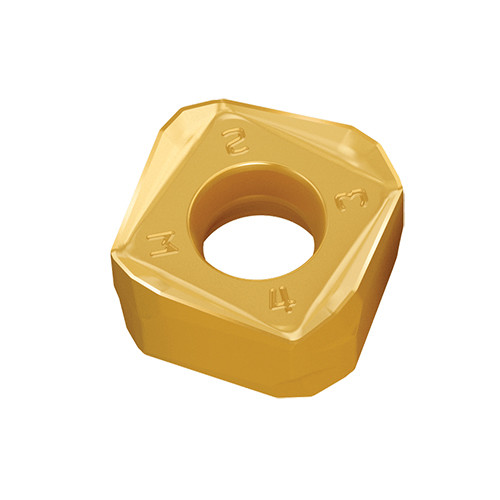

Taegutec SQKU 1105 ANR-M TT9080

Product Code: 6236127

$27.17$24.70 Ex. GST

Product Code: 6236127 SKU 6236127 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

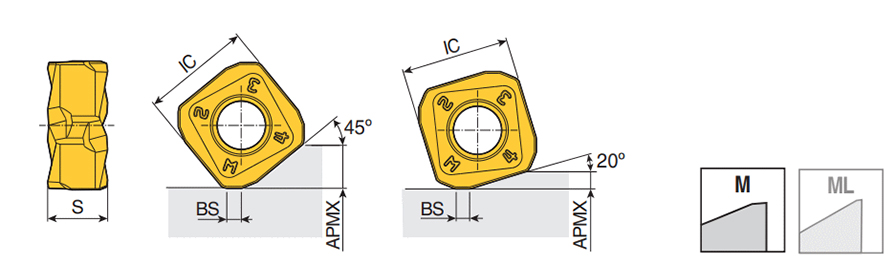

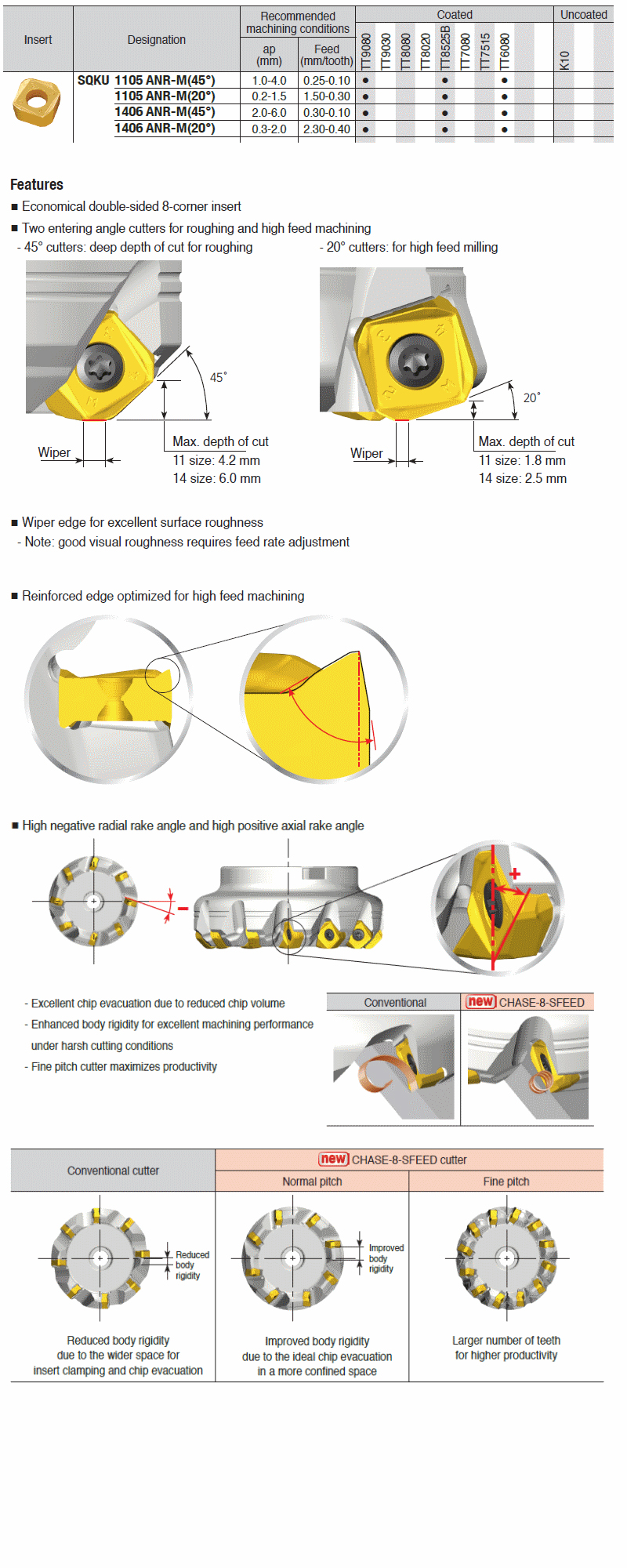

Double-sided Square inserts with 8 cutting edges for roughing (45°) and high feed (20°) face milling and high feed machining.

Weight	0.0077 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Maximum Feed per Tooth (fz(max)): 0.25 mm/tooth Application:, Chamfer & Serration, Facing, High Feed Milling, Inserts, Cutting Edge Material: Carbide Depth of Cut Maximum (APMX): 4 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Inscribed Circle Diameter (IC): 11.2 mm Number of Cutting Edges: 8 Insert Thickness (S): 6.3 mm Measurement Type: Metric Coating: TiAlN+TiN Body Material: Carbide Grade: TT9080 Unit: M
