Taegutec SQKU 120608 PNR-MP TT2510

Product Code: 6322162

$31.47$28.61 Ex. GST

Product Code: 6322162 SKU 6322162 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

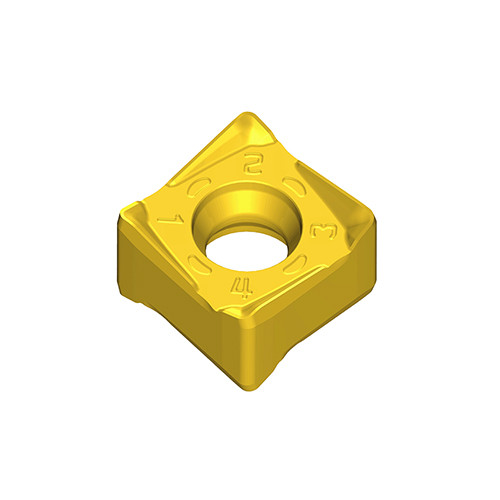

Taegutec SQKU 120608 PNR-MP TT2510

Taegutec SQKU 120608 PNR-MP TT2510 - Image 2

Taegutec SQKU 120608 PNR-MP TT2510 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

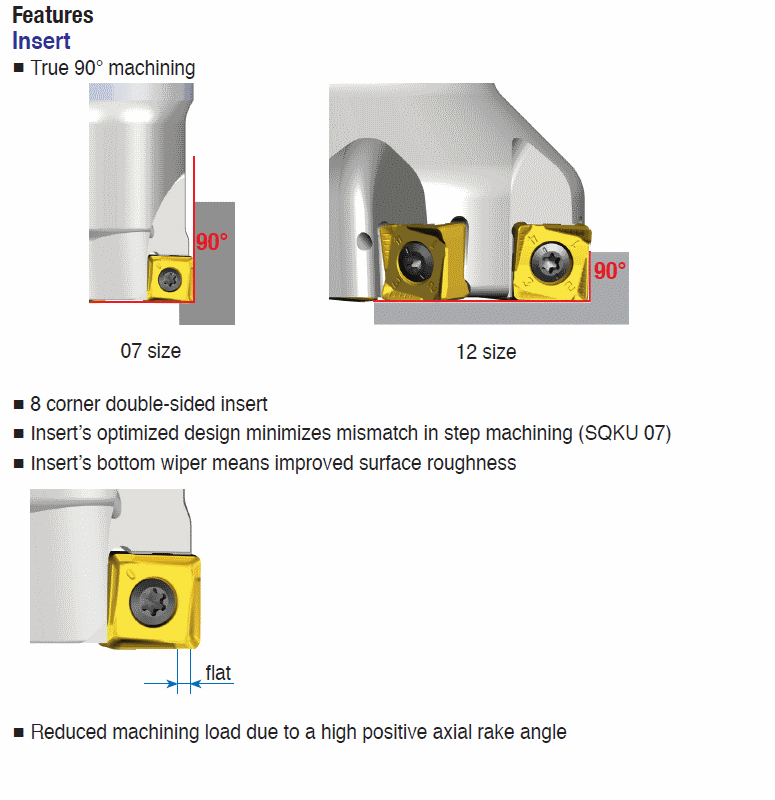

Double-sided Square inserts with economical 8 cutting edges for 90° shoulder milling for general applications

Additional information

Weight	0.0064 kg
barcode

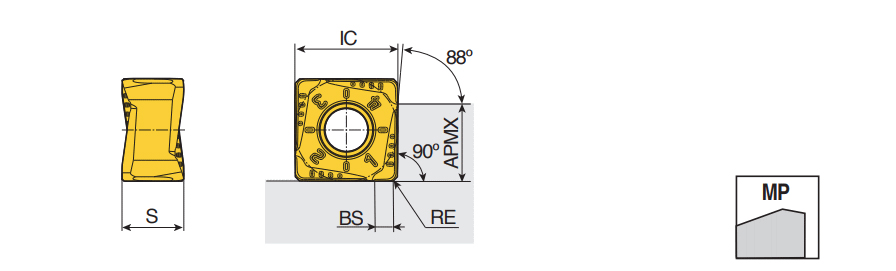

Additional Information	Applicable Material:, Steel, Hard Materials, Maximum Feed per Tooth (fz(max)): 0.25 mm/tooth Application:, Facing, Inserts, Shouldering, Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.15 mm/tooth Depth of Cut Maximum (APMX): 6.5 mm Number of Cutting Edges: 8 Inscribed Circle Diameter (IC): 12.2 mm Measurement Type: Metric Insert Thickness (S): 8.06 mm Body Material: Carbide Coating: AlTiN Unit: M Grade: TT2510

Brand

Taegutec
