Taegutec SQKU 120608 PNR-MPTT8525B

Product Code: 6324015

$28.61$26.01 Ex. GST

Product Code: 6324015 SKU 6324015 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

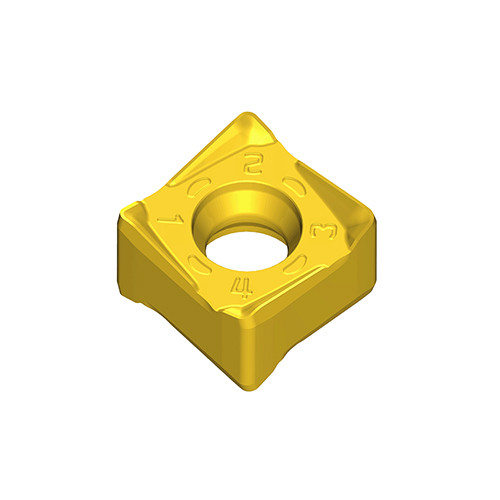

Taegutec SQKU 120608 PNR-MPTT8525B

Taegutec SQKU 120608 PNR-MPTT8525B - Image 2

Taegutec SQKU 120608 PNR-MPTT8525B - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

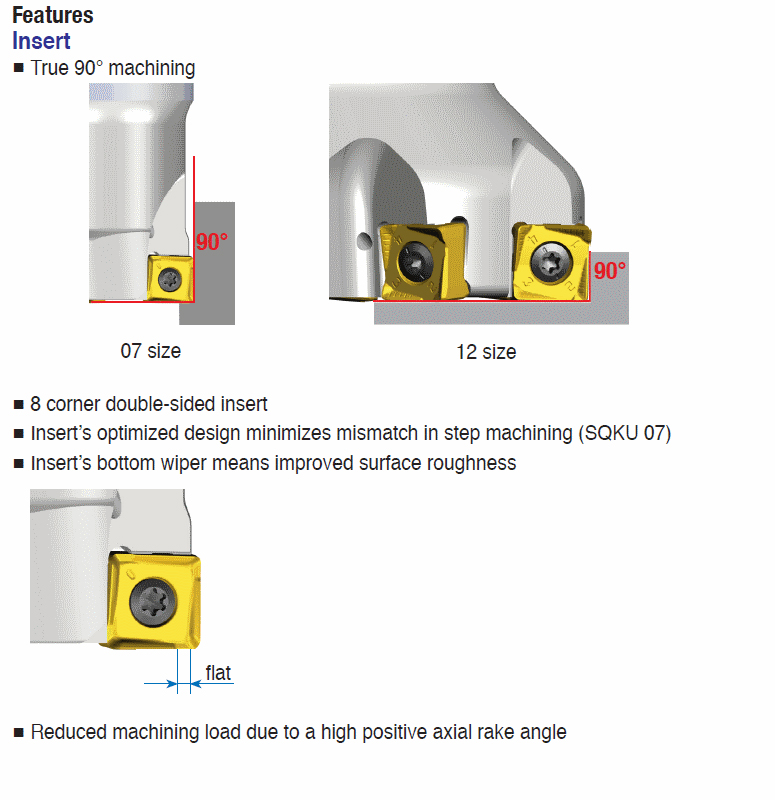

Double-sided Square inserts with economical 8 cutting edges for 90° shoulder milling for general applications

Additional information

Weight	0.0112 kg
barcode

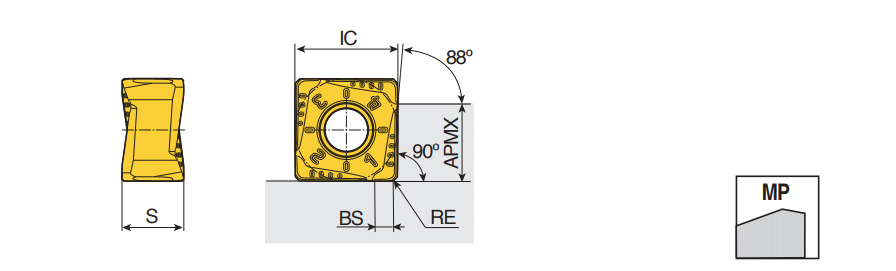

Additional Information	Applicable Material:, Steel, Stainless Steel, Maximum Feed per Tooth (fz(max)): 0.25 mm/tooth Application:, Facing, Inserts, Shouldering, Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.15 mm/tooth Depth of Cut Maximum (APMX): 6.5 mm Number of Cutting Edges: 8 Inscribed Circle Diameter (IC): 12.2 mm Measurement Type: Metric Insert Thickness (S): 8.06 mm Body Material: Carbide Coating: MTCN-Al2O3-TiN Unit: M Grade: TT8525B

Brand

Taegutec
