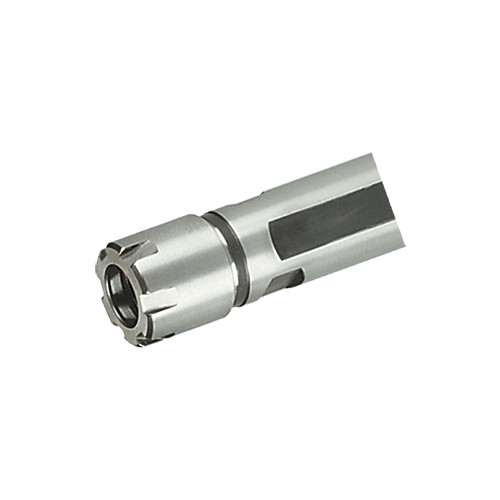

DIN 6499 ER mini collet chucks with straight shank and flat area for clamping on Swiss type CNC lathes
Additional information
Weight
0.4200 kg
barcode
Additional Information
Connection Size (CSI): ER20
Connection Diameter Minimum Workpiece Side (DCONNWS): 1 mm
Body Diameter (BD): 28 mm
Connection Diameter Maximum Workpiece Side (DCONXWS): 13 mm
Body Length Maximum (LBX): 39 mm
Measurement Type: Metric
Connection Thread Nominal Size Machine Side (THSZMS): M12X1
Body Material: Steel
Shank Length (LS): 80 mm
Unit: M
Application:, Straight ST
