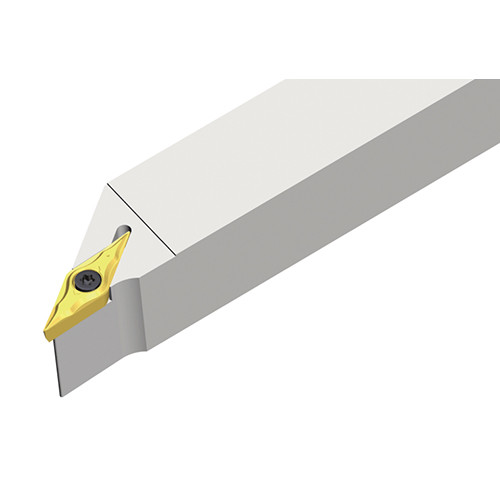

Screw type holders with 93° approach angle & & 35° VC.T positive inserts for Swiss turn
Additional information
Weight
0.3750 kg
barcode
Additional Information
Shank Height (H): 20 mm
Application:, Ext 93° App 35° Diamond, Tools for Swiss Machines, Shank Width (B): 20 mm
Body Material: Steel
Head Length (LH): 21 mm
Measurement Type: Metric
Functional Width (WF): 20 mm
Unit: M
Cutting Direction (HAND): Left Hand
