Taegutec SVKT 114516-ML TT8080

Product Code: 6326547

$28.03$25.48 Ex. GST

Product Code: 6326547 SKU 6326547 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

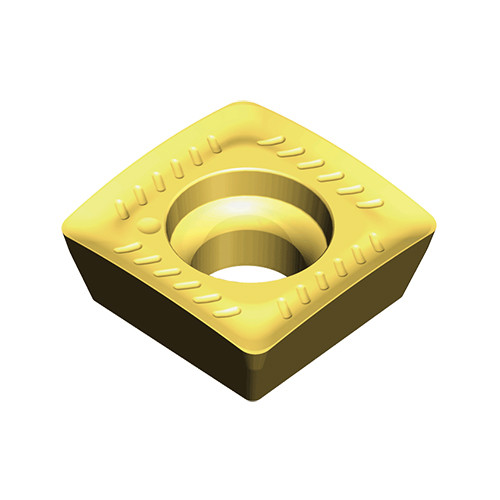

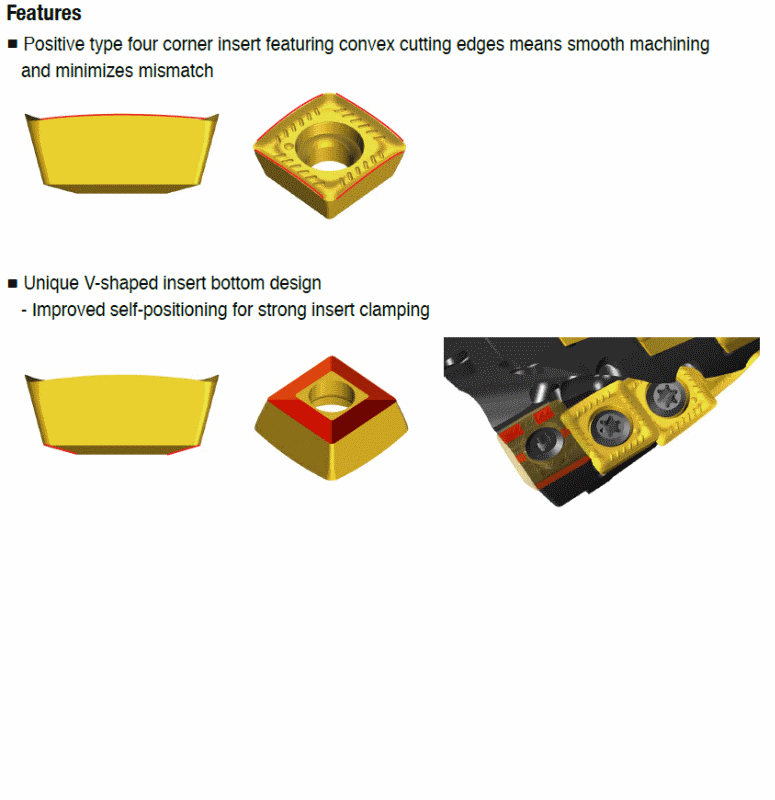

Positive square inserts with 4 sharp convex cutting edges & secure V-bottom for extended flute cutters on machining of stainless steel

Weight	0.0054 kg
barcode

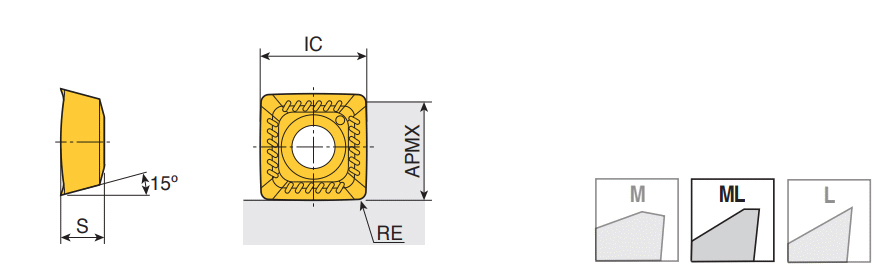

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT8080 Application:, Inserts, Shouldering, Slotting, Trochoidal Milling, Maximum Feed per Tooth (fz(max)): 0.15 mm/tooth Corner Radius (RE): 1.6 mm Cutting Edge Material: Carbide Depth of Cut Maximum (APMX): 9 mm Minimum Feed per Tooth (fz(min)): 0.04 mm/tooth Inscribed Circle Diameter (IC): 11 mm Measurement Type: Metric Insert Thickness (S): 4.5 mm Body Material: Carbide Coating: TiAlN+TiN Unit: M
