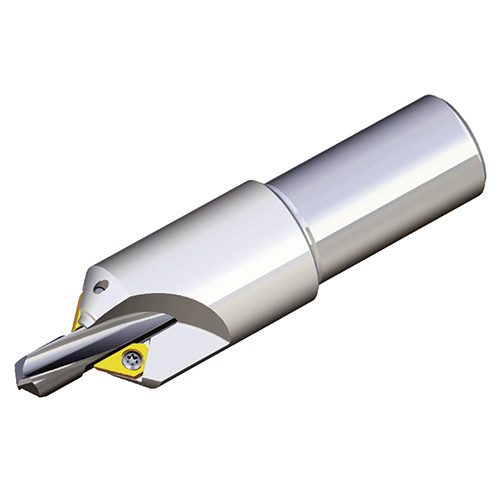

Drill holders of chamfering and drilling together for solid carbide drills
Additional information
Weight
0.1980 kg
barcode
Additional Information

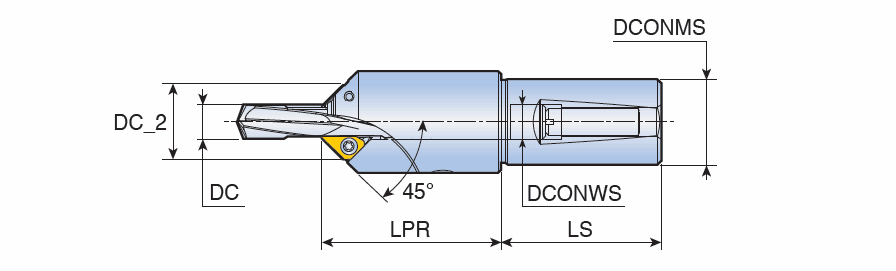

Application:, Chamfering, Cutting Diameter Maximum (DCX): 8 mm
Connection Diameter Machine Side (DCONMS): 20 mm
Measurement Type: Metric
Shank Length (LS): 50 mm
Length Group: 0xD
Functional Length (LF): 47.4 mm
Body Material: Steel
Cutting Diameter Minimum (DCN): 7.1 mm
Unit: M
