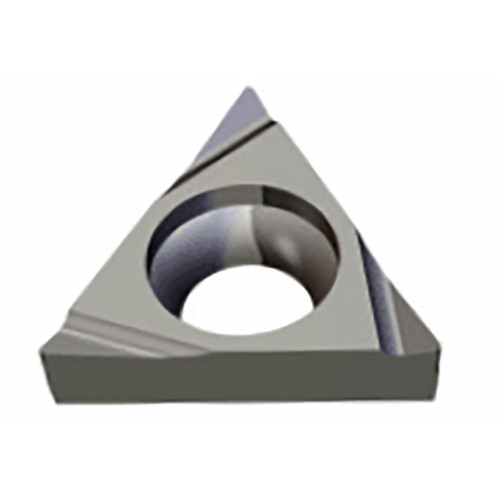

Taegutec TBGT 060104 R-FF TT9020

Applicable Material:, Steel, Stainless Steel, Grade: TT9020
Application:, Inserts, Int 93° App 60° Triangle, Int 93° App 70° Diamond, Int 95° App 60° Triangle, Min D.O.C.: 0.1 mm
Corner Radius (RE): 0.4 mm
Depth of Cut Maximum (APMX): 0.4 mm
Cutting Edge Length (L): 6 mm
Min. Turning Feed (ft(min)): 0.05 mm/rev
Insert Thickness (S): 1.59 mm
Max. Turning Feed (ft(max)): 0.2 mm/rev
Inscribed Circle Diameter (IC): 3.97 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiCN
Unit: M
