Taegutec TCAP 14R-3.0DN-GV

Product Code: 3203877

$1,004.92$913.56 Ex. GST

Product Code: 3203877 SKU 3203877 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

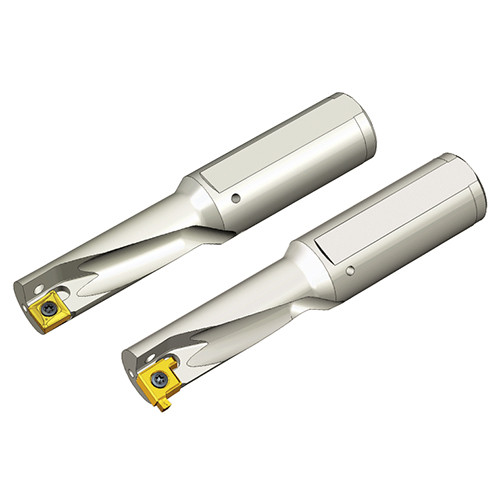

Multifunction tools for drilling, boring, internal grooving and external turning & facing with maximum 3.0xD length & coolant hole

Weight	0.2300 kg
Dimensions
barcode

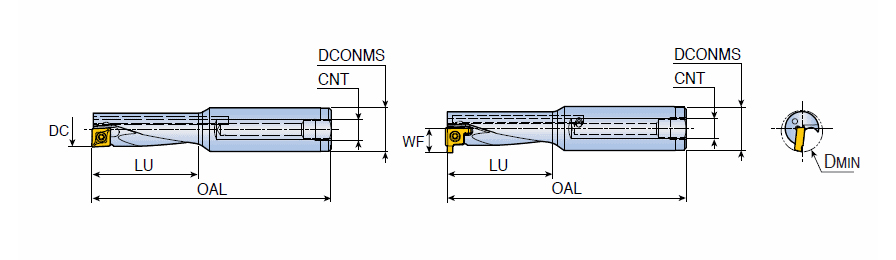

Additional Information	Cutting Diameter (DC): 14 mm Cutting Diameter Minimum (DCN): 16.5 mm Usable Length (LU): 42 mm Measurement Type: Metric Application:, Drilling Ext Face Int. Turning, Int. Groove & Turn, Int. Grooving, Length Group: 3xD Connection Diameter Machine Side (DCONMS): 16 mm Body Material: Steel Overall Length (OAL): 100 mm Unit: M Connection Thread Size (Ts): G 1/8
