Taegutec TCAP 16L-3.0DN-GV

Product Code: 3203878

$1,029.60$936.00 Ex. GST

Product Code: 3203878 SKU 3203878 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

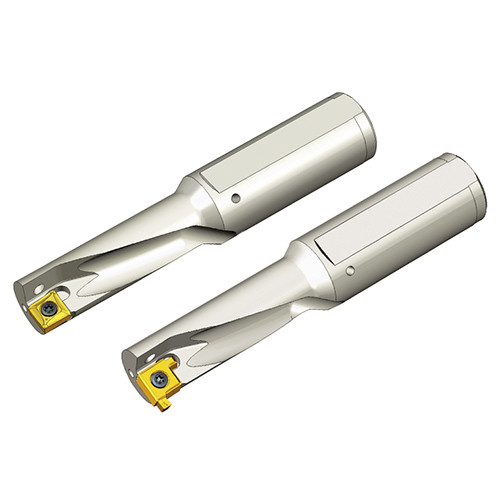

Taegutec TCAP 16L-3.0DN-GV

Taegutec TCAP 16L-3.0DN-GV - Image 2

Taegutec TCAP 16L-3.0DN-GV - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Multifunction tools for drilling, boring, internal grooving and external turning & facing with maximum 3.0xD length & coolant hole

Additional information

Weight	0.4180 kg
Dimensions
barcode

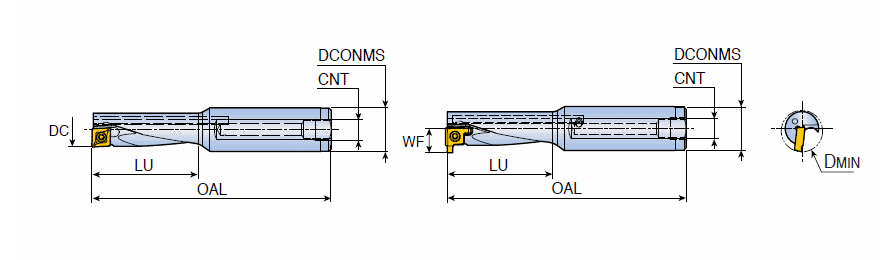

Additional Information	Cutting Diameter (DC): 16 mm Cutting Diameter Minimum (DCN): 19 mm Usable Length (LU): 48 mm Measurement Type: Metric Application:, Drilling Ext Face Int. Turning, Int. Groove & Turn, Int. Grooving, Length Group: 3xD Connection Diameter Machine Side (DCONMS): 20 mm Body Material: Steel Overall Length (OAL): 110 mm Unit: M Connection Thread Size (Ts): G 1/8

Brand

Taegutec
