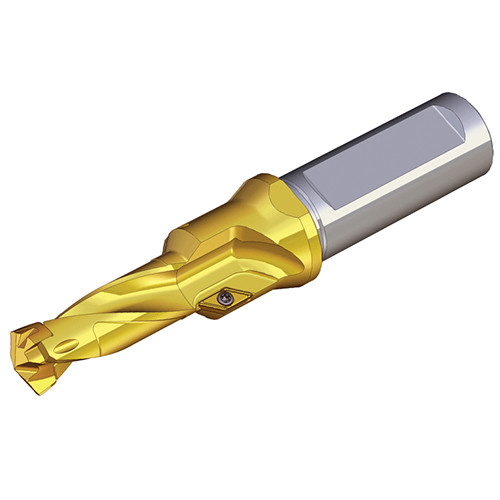

DRILLRUSH Head changeable drills with chamfering for pre-thread holes (M8.0 – M24.0)
Additional information
Weight
0.1230 kg
barcode
Additional Information
Usable Length (LU): 26 mm
Shank Length (LS): 45 mm
Application:, Chamfering, Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 12 mm
Pre-thread Hole Diameter (Dnominal): 8.5 mm
Cutting Diameter Minimum (DCN): 8.5 mm
Body Material: Steel
Cutting Diameter Maximum (DCX): 8.9 mm
Unit: M
Functional Length (LF): 48.71 mm
