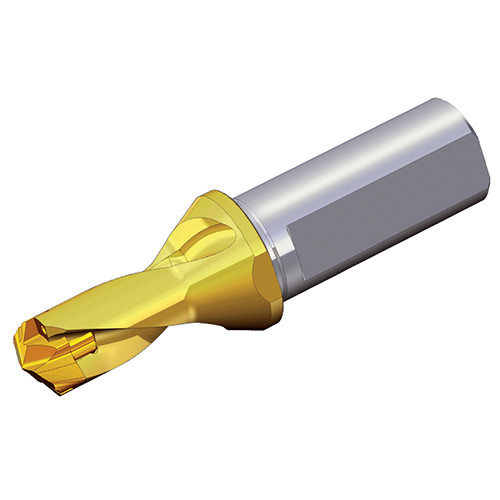

Head changeable drills with Weldon shank (1.5xD) and coolant holes
Additional information
Weight
0.2200 kg
barcode
Additional Information

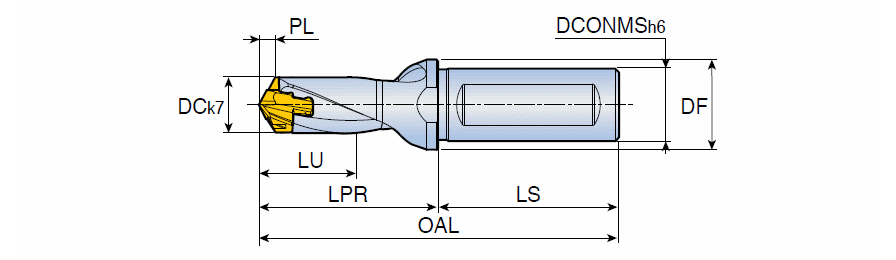

Usable Length (LU): 29 mm
Functional Length (LF): 49.81 mm
Application:, Drilling, Tools for Swiss Machines, Shank Length (LS): 50 mm
Connection Diameter Machine Side (DCONMS): 20 mm
Measurement Type: Metric
Cutting Diameter Minimum (DCN): 17 mm
Body Material: Steel
Cutting Diameter Maximum (DCX): 17.9 mm
Unit: M
