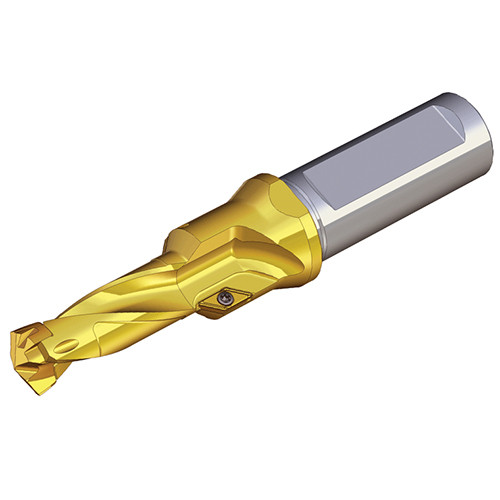

DRILLRUSH Head changeable drills with chamfering for pre-thread holes (M8.0 – M24.0)
Additional information
Weight
0.4200 kg
barcode
Additional Information
Usable Length (LU): 48 mm
Shank Length (LS): 56 mm
Application:, Chamfering, Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 25 mm
Pre-thread Hole Diameter (Dnominal): 21 mm
Cutting Diameter Minimum (DCN): 21 mm
Body Material: Steel
Cutting Diameter Maximum (DCX): 21.9 mm
Unit: M
Functional Length (LF): 76.82 mm
