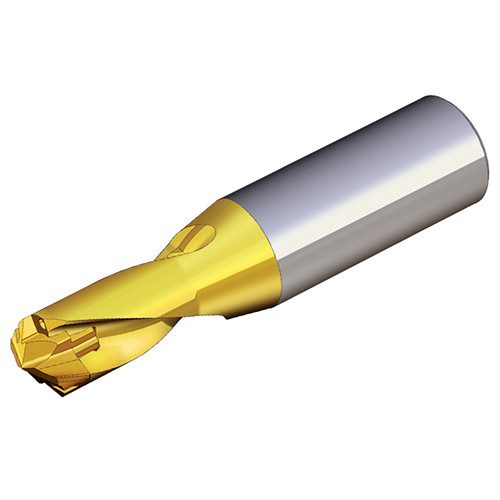

Head changeable drills with cylindrical shank (1.5xD) and coolant holes
Additional information
Weight
0.5400 kg
barcode
Additional Information

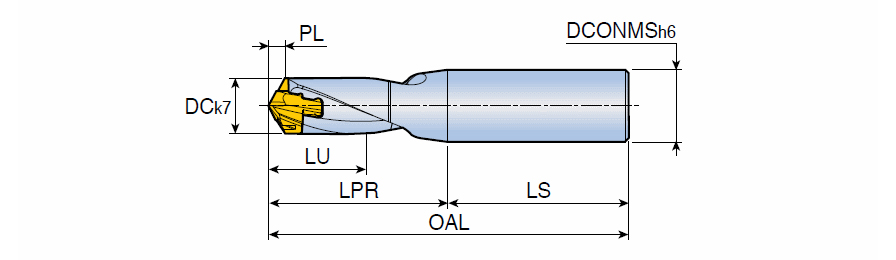

Usable Length (LU): 38 mm
Functional Length (LF): 67.34 mm
Application:, Drilling, Shank Length (LS): 60 mm
Connection Diameter Machine Side (DCONMS): 32 mm
Measurement Type: Metric
Cutting Diameter Minimum (DCN): 23 mm
Body Material: Steel
Cutting Diameter Maximum (DCX): 23.9 mm
Unit: M
