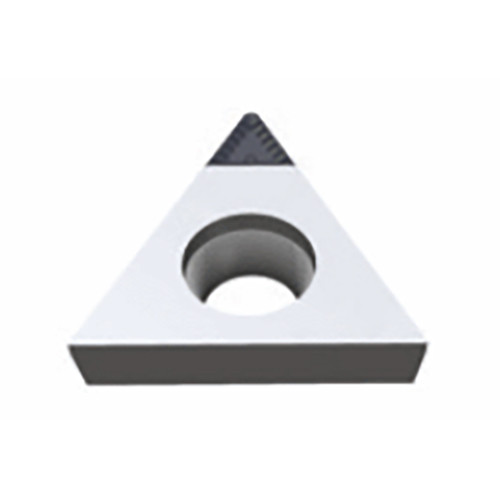

Taegutec TCGT 110204 CB KP300

Applicable Material:, Aluminum / Non-Ferrous Materials, Grade: KP300
Application:, Ext 91° App 60° Triangle, Ext 91° App Face 60° Triangle, Ext 93° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Tools for Swiss Machines, Min D.O.C.: 0.5 mm
Corner Radius (RE): 0.4 mm
Depth of Cut Maximum (APMX): 2 mm
Cutting Edge Length (L): 11 mm
Min. Turning Feed (ft(min)): 0.1 mm/rev
Insert Thickness (S): 2.38 mm
Max. Turning Feed (ft(max)): 0.5 mm/rev
Inscribed Circle Diameter (IC): 6.35 mm
Measurement Type: Metric
Cutting Edge Material: PCD
Body Material: Carbide
Coating: PCD
Unit: M
