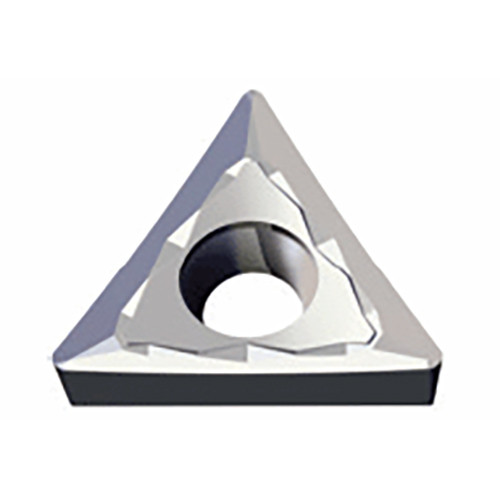

Taegutec TCGT 16T304 FL K10

Description

Positive periphery ground & top polished Triangular inserts with very high positive rake and sharp cutting edges for aluminum machining

Weight	0.0055 kg
barcode
Additional Information	Applicable Material:, Cast Iron, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium, Grade: K10 Application:, Ext 91° App 60° Triangle, Ext 91° App Face 60° Triangle, Ext 93° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Tools for Swiss Machines, Min D.O.C.: 0.5 mm Corner Radius (RE): 0.4 mm Depth of Cut Maximum (APMX): 3 mm Cutting Edge Length (L): 16.5 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Insert Thickness (S): 3.97 mm Max. Turning Feed (ft(max)): 0.3 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: Uncoated Unit: M
