Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec TCGW 16T308 LS TB650
$73.90$67.18 Ex. GST

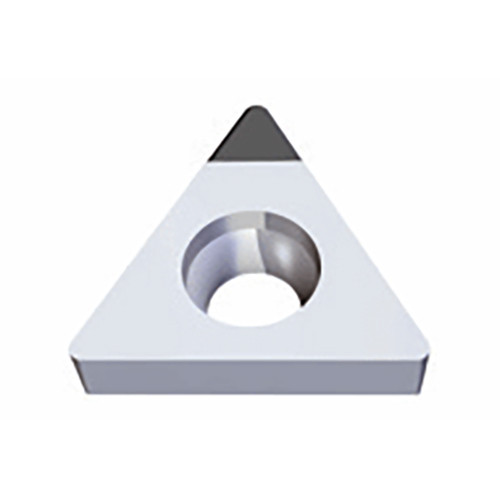

Positive 60° Triangular inserts with CBN tips for finishing of hardened steels and cast irons
Applicable Material:, Hard Materials, Grade: TB650 Application:, Ext 91° App 60° Triangle, Ext 91° App Face 60° Triangle, Ext 93° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Tools for Swiss Machines, Min D.O.C.: 0.05 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 0.5 mm Cutting Edge Length (L): 16.5 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Insert Thickness (S): 3.97 mm Max. Turning Feed (ft(max)): 0.3 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: PCBN Body Material: Carbide Coating: Uncoated Unit: M
