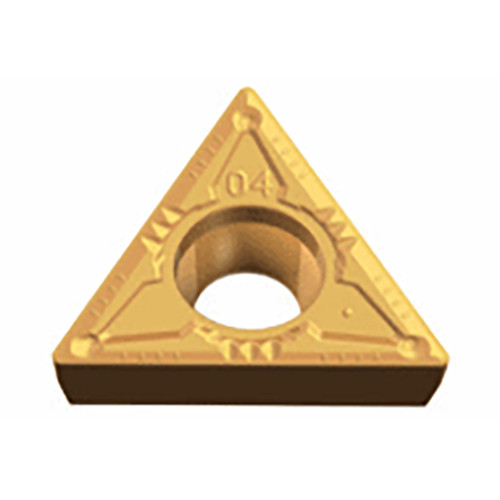

Taegutec TCMT 090202 FM TT5100

Description

Positive 60° Triangular inserts for medium & semi-finishing machining of steels & stainless steels with low cutting force & 7° clearance angle

Weight	0.0021 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Grade: TT5100 Application:, Ext 91° App 60° Triangle, Ext 91° App Face 60° Triangle, Ext 93° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Tools for Swiss Machines, Min D.O.C.: 0.5 mm Corner Radius (RE): 0.2 mm Depth of Cut Maximum (APMX): 1.5 mm Cutting Edge Length (L): 7.6 mm Min. Turning Feed (ft(min)): 0.07 mm/rev Insert Thickness (S): 2.38 mm Max. Turning Feed (ft(max)): 0.2 mm/rev Inscribed Circle Diameter (IC): 5.56 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
