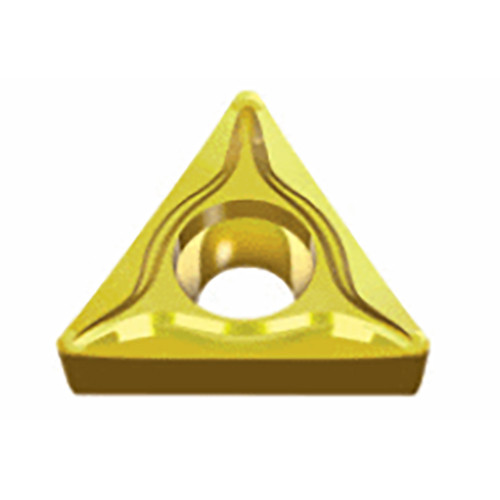

Taegutec TCMT 090208 FG TT8125B

Description

Positive Triangular inserts for finish to medium light applications of steels & stainless steels with 7° clearance angle & excellent chip control

Weight	0.0021 kg
barcode
Additional Information	Applicable Material:, Steel, Grade: TT8125B Application:, Ext 91° App 60° Triangle, Ext 91° App Face 60° Triangle, Ext 93° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Tools for Swiss Machines, Min D.O.C.: 0.6 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 1.5 mm Cutting Edge Length (L): 9.6 mm Min. Turning Feed (ft(min)): 0.1 mm/rev Insert Thickness (S): 2.38 mm Max. Turning Feed (ft(max)): 0.25 mm/rev Inscribed Circle Diameter (IC): 5.56 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
